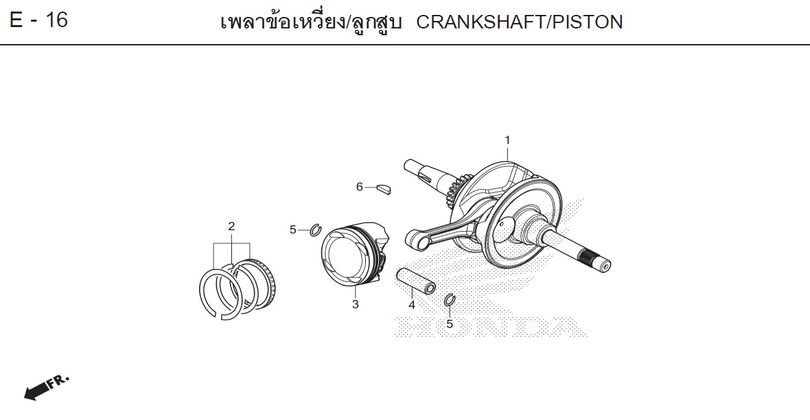

ADV160 2026 · E-16 CRANKSHAFT/PISTON
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-16
- 1 CRANKSHAFT COMP 13000-K2S-N00Qty per bike: 1
- 2 PISTON RING SET (STD) (RIKEN) 13011-K0S-305Qty per bike: 1
- 2 PISTON RING SET (STD) (TPR) 13011-K1Z-305Qty per bike: 1
- 2 PISTON RING SET (O.S. 0.25) (RIKEN) 13021-K0S-305Qty per bike: 1
- 2 PISTON RING SET (O.S. 0.25) (TPR) 13021-K1Z-305Qty per bike: 1
- 2 PISTON RING SET (O.S. 0.50) (RIKEN) 13031-K0S-305Qty per bike: 1
- 2 PISTON RING SET (O.S. 0.50) (TPR) 13031-K1Z-305Qty per bike: 1
- 3 PISTON (STD) 13101-K0S-V00Qty per bike: 1
- 3 PISTON (O.S. 0.25) 13102-K0S-305Qty per bike: 1
- 3 PISTON (O.S. 0.50) 13103-K0S-305Qty per bike: 1
- 4 PIN, PISTON 13111-K0R-V00Qty per bike: 1
- 5 CLIP, PISTON PIN, 14 mm 13115-KZY-700Qty per bike: 2
- 6 KEY, 4 mm 90741-003-010Qty per bike: 1
