ADV350 2023 · F-21 REAR WHEEL/SWINGARM

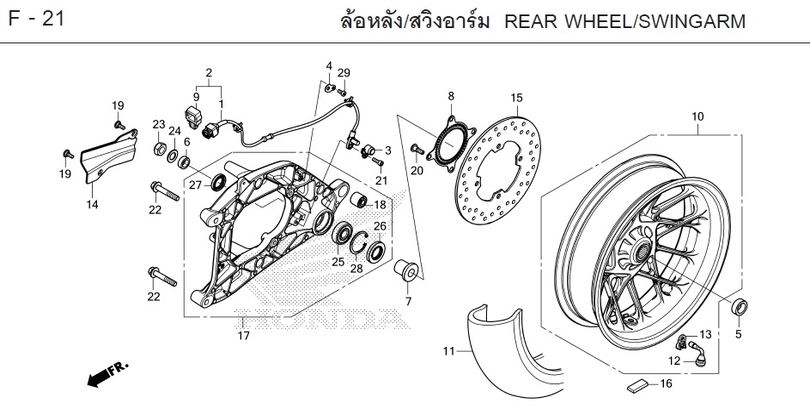

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 2 SENSOR, REAR WHEEL SPEED 38510-K1B-T21Qty per bike: 1
- 3 PROTECTOR, REAR WHEEL SPEED SENSOR 38511-K1B-T00Qty per bike: 1
- 4 STAY, WIRE 38512-K1B-T00Qty per bike: 1
- 5 COLLAR, REAR WHEEL SIDE A 42311-K1B-T00Qty per bike: 1
- 6 COLLAR B 42312-K04-930Qty per bike: 1
- 7 COLLAR, REAR WHEEL SIDE B 42313-K1B-T00Qty per bike: 1
- 8 RING, REAR WHEEL PULSER 42515-K1B-T00Qty per bike: 1
- 9 CLIP, 2-WAY (DARK BLUE) 42524-T5A-003Qty per bike: 1
- 10 REAR WHEEL SET (ALL COLORS) 42650-K2L-D00ZAQty per bike: 1
- 11 TIRE, REAR 140/70-14 M/C 62P 42711-K2L-T01Qty per bike: 1
- 12 VALVE, TIRE 42753-KJ9-005Qty per bike: 1
- 13 STAY, TIRE VALVE 42754-MN5-000Qty per bike: 1
- 14 PROTECTOR, REAR BRAKE HOSE 43156-K2L-D00Qty per bike: 1
- 15 DISK, REAR BRAKE 43251-K1B-T01Qty per bike: 1
- 15 DISK, REAR BRAKE 43251-K1B-T21Qty per bike: 1
- 16 WEIGHT, WHEEL BALANCER (10G) 44721-MGH-H21Qty per bike: 1
- 16 WEIGHT, WHEEL BALANCER (15 g) 44722-MGH-H21Qty per bike: 1
- 16 WEIGHT, WHEEL BALANCER (20G) 44723-MGH-H21Qty per bike: 1
- 17 SWINGARM SET 52100-K2L-T00Qty per bike: 1
- 18 BUSH, VIBRATION DAMPER 52108-KTW-B00Qty per bike: 1
- 19 BOLT, 6x18 90101-K0H-J00Qty per bike: 2
- 20 BOLT, 8x25 90105-MKR-D30Qty per bike: 4
- 21 BOLT, 6x18 90117-K1B-T00Qty per bike: 1
- 22 BOLT, WASHER, 10x60 90132-KSV-J00Qty per bike: 2
- 23 NUT, U, 16 mm 90305-KWN-701Qty per bike: 1
- 24 WASHER, 16 mm 90505-K04-930Qty per bike: 1
- 25 BEARING, RADIAL BALL, 6303UU L 91051-K53-D01Qty per bike: 1
- 25 BEARING, RADIAL BALL, 6303 91051-KS4-003Qty per bike: 1
- 26 OIL SEAL, 28x47.2x7 91252-MC4-013Qty per bike: 1
- 27 SEAL, DUST, 37x25x6 91258-HB3-003Qty per bike: 1
- 28 CLIP, INNER LOCK, 47 mm 94520-47000Qty per bike: 1
- 29 BOLT, 6x12 96600-06012-00Qty per bike: 1
