C125 2024 · E-14 CRANKSHAFT/PISTON

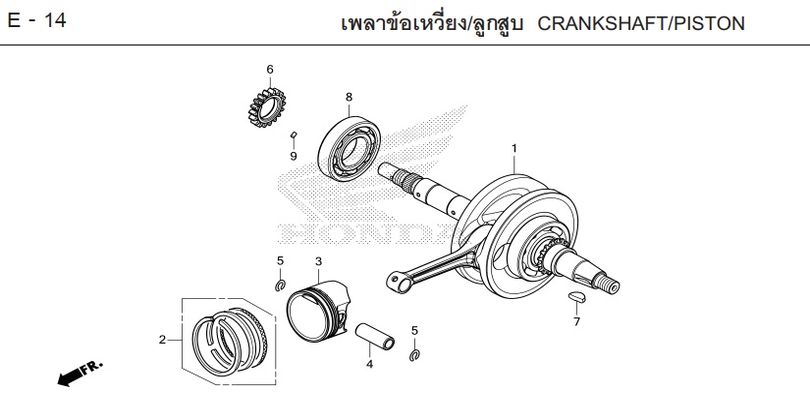

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-14
- 1 CRANKSHAFT COMP 13000-K1M-T00Qty per bike: 1
- 2 PISTON RING SET (STD) 13011-K0L-D00Qty per bike: 1
- 2 PISTON RING SET (STD) 13011-K1J-D00Qty per bike: 1
- 2 PISTON RING SET (O.S. 0.25) 13021-K0L-D00Qty per bike: 1
- 2 PISTON RING SET (0.25) 13021-K1J-D00Qty per bike: 1
- 2 PISTON RING SET (O.S. 0.50) 13031-K0L-D00Qty per bike: 1
- 2 PISTON RING SET (0.50) 13031-K1J-D00Qty per bike: 1
- 2 PISTON RING SET (O.S. 0.75) 13041-K0L-D00Qty per bike: 1
- 2 PISTON RING SET (0.75) 13041-K1J-D00Qty per bike: 1
- 2 PISTON RING SET (O.S. 1.00) 13051-K0L-D00Qty per bike: 1
- 2 PISTON RING SET (1.00) 13051-K1J-D00Qty per bike: 1
- 3 PISTON (STD) 13101-K26-G00Qty per bike: 1
- 3 PISTON (0.25) 13102-K26-G00Qty per bike: 1
- 3 PISTON (0.50) 13103-K26-G00Qty per bike: 1
- 3 PISTON (0.75) 13104-K26-G00Qty per bike: 1
- 3 PISTON (1.00) 13105-K26-G00Qty per bike: 1
- 4 PIN, PISTON 13111-K0J-N00Qty per bike: 1
- 5 CLIP, PISTON PIN, 12 mm 13115-K1M-T00Qty per bike: 2
- 6 GEAR, OIL PUMP DRIVE (18T) 15341-K1M-T01Qty per bike: 1
- 7 KEY, 4 mm 90741-003-010Qty per bike: 1
- 8 BEARING, RADIAL BALL, 62/28 91001-K1M-T01Qty per bike: 1
- 8 BEARING, RADIAL BALL, 62/28 91001-K1M-T02Qty per bike: 1
- 9 PIN, DOWEL, 3x5 94303-03050Qty per bike: 1
