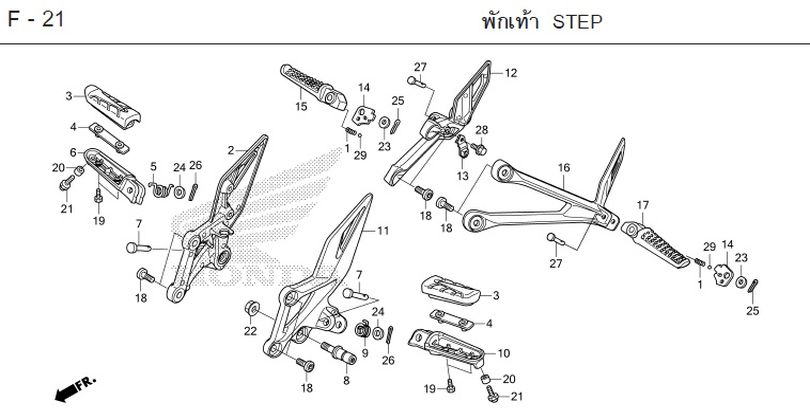

CBR150R 2019 · F-21 STEP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 SPRING, KICK STARTER 28333-300-000Qty per bike: 2
- 2 STAY, RIGHT FRONT STEP 50600-K45-N40Qty per bike: 1
- 3 RUBBER, FRONT STEP 50610-K15-900Qty per bike: 2
- 4 PLATE, FRONT STEP SHAFT MOUNTING 50613-K45-N40Qty per bike: 2
- 5 SPRING, RIGHT FRONT STEP RETURN 50617-445-840Qty per bike: 1
- 6 SHAFT, RIGHT FRONT STEP 50635-K45-N40Qty per bike: 1
- 7 PIN, FRONT STEP 50639-ML0-010Qty per bike: 2
- 8 PIN, GEARSHIFT PEDAL PIVOT 50643-KYJ-900Qty per bike: 1
- 9 SPRING, LEFT FRONT STEP RETURN 50644-445-840Qty per bike: 1
- 10 SHAFT, LEFT FRONT STEP 50645-K45-N40Qty per bike: 1
- 11 STAY, LEFT FRONT STEP 50700-K45-N40Qty per bike: 1
- 12 STAY, RIGHT REAR STEP 50715-K45-N40Qty per bike: 1
- 13 STAY, BRAKE RESERVOIR 50716-K45-N40Qty per bike: 1
- 14 PLATE, REAR STEP 50718-MEE-000Qty per bike: 2
- 15 STEP, RIGHT REAR 50720-KT7-761Qty per bike: 1
- 16 STAY, LEFT REAR STEP 50725-K45-N40Qty per bike: 1
- 17 STEP, LEFT REAR 50730-KT7-761Qty per bike: 1
- 18 BOLT, 8x20 90104-K15-920Qty per bike: 8
- 19 BOLT, SPECIAL, 5x14 90108-K15-900Qty per bike: 4
- 20 COLLAR, 6 mm 90311-K15-900Qty per bike: 1
- 21 BOLT, CAP, 6x16 92501-06016-0AQty per bike: 2
- 22 NUT, FLANGE, 8 mm 94050-08080Qty per bike: 1
- 23 WASHER, 6 mm 94101-06000Qty per bike: 1
- 24 WASHER, 8 mm 94102-08000Qty per bike: 2
- 25 PIN, COTTER, 1.6x15 94201-16150Qty per bike: 2
- 26 PIN, COTTER, 2.0x15 94201-20150Qty per bike: 2
- 27 PIN, REAR STEP C 95015-83000Qty per bike: 2
- 28 BOLT, FLANGE, 6x14 96001-06014-07Qty per bike: 1
- 29 BALL, #8 (1/4) 96211-08000Qty per bike: 2
This catalogue is shared by: CBR150R 2019, CBR150R 2020. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
