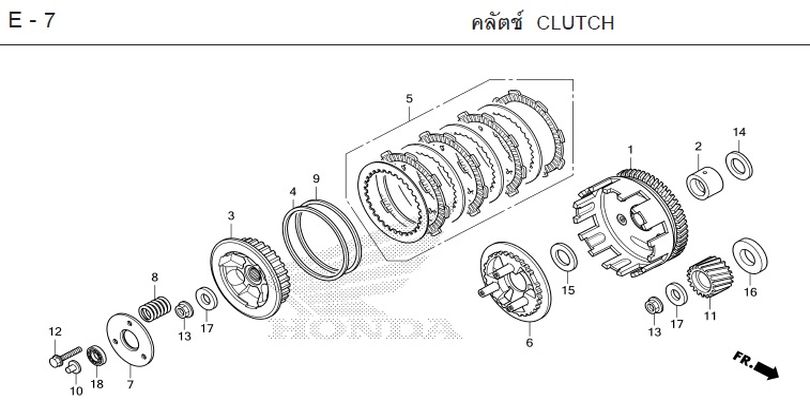

CBR150R 2025 · E-7 CLUTCH
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-7
- 1 CLUTCH OUTER 22100-K45-NL1Qty per bike: 1
- 2 COLLAR, CLUTCH OUTER 22105-K56-N00Qty per bike: 1
- 3 CLUTCH CENTER 22121-K45-NL1Qty per bike: 1
- 4 WASHER, SPRING 22125-MJ8-010Qty per bike: 1
- 5 CLUTCH PLATE SET 22210-K45-305Qty per bike: 1
- 6 PLATE, CLUTCH PRESSURE 22350-K45-NL1Qty per bike: 1
- 7 PLATE, CLUTCH LIFTER 22361-K45-NL1Qty per bike: 1
- 8 SPRING, CLUTCH 22401-K45-NL1Qty per bike: 3
- 9 RING, SPRING 22402-KPM-850Qty per bike: 1
- 10 PRESSER, CLUTCH 22849-K15-900Qty per bike: 1
- 11 GEAR, PRIMARY DRIVE A (23T) (WHITE) 23121-K56-N00Qty per bike: 1
- 11 GEAR, PRIMARY DRIVE B 23T (BLUE) 23122-K56-N00Qty per bike: 1
- 11 GEAR, PRIMARY DRIVE C (23T) (YELLOW) 23123-K56-N00Qty per bike: 1
- 12 BOLT, FLANGE, SPECIAL 90050-KFL-850Qty per bike: 3
- 13 NUT, FLANGE, SPECIAL, 14 mm 90202-KRM-840Qty per bike: 2
- 14 WASHER, 17 mm 90401-KY4-901Qty per bike: 1
- 15 WASHER, 17 mm 90405-KTT-900Qty per bike: 1
- 16 WASHER, 20 mm 90434-K56-N00Qty per bike: 1
- 17 WASHER, 14.1 mm 90462-KWW-740Qty per bike: 2
- 18 BEARING, RADIAL BALL, 6903 91007-KE1-003Qty per bike: 1
