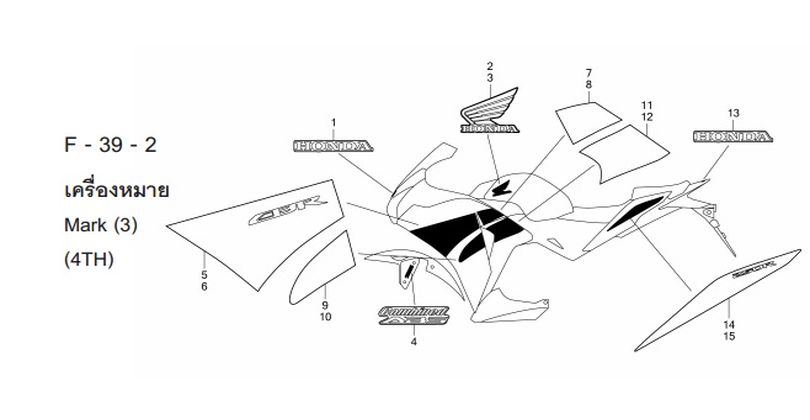

CBR250R 2013 · F-39-2 MARK (3)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-39-2
- 1 EMBLEM, HONDA (80 mm) (BLACK/RED) 86101-KYJ-E20ZCQty per bike: 1
- 2 MARK, RIGHT WING (90 mm) (BLACK/RED) 86201-KYJ-E20ZCQty per bike: 1
- 3 MARK, LEFT WING (90 mm) (BLACK/RED) 86202-KYJ-E20ZCQty per bike: 1
- 4 MARK, ABS (BLACK/RED) 86611-KYJ-E20ZCQty per bike: 2
- 5 STICKER, RIGHT CENTER FAIRING A (BLACK/RED) 86642-KYJ-L40ZAQty per bike: 1
- 6 STICKER, LEFT CENTER FAIRING A (BLACK/RED) 86643-KYJ-L40ZAQty per bike: 1
- 7 STICKER, RIGHT CENTER FAIRING B (BLACK/RED) 86644-KYJ-L40ZAQty per bike: 1
- 8 STICKER, LEFT CENTER FAIRING B (BLACK/RED) 86645-KYJ-L40ZAQty per bike: 1
- 9 STICKER, RIGHT CENTER FAIRING C (BLACK/RED) 86646-KYJ-L40ZAQty per bike: 1
- 10 STICKER, LEFT CENTER FAIRING C (BLACK/RED) 86647-KYJ-L40ZAQty per bike: 1
- 11 STICKER, RIGHT CENTER REAR FAIRING (BLACK/RED) 86648-KYJ-L40ZAQty per bike: 1
- 12 STICKER, LEFT CENTER REAR FAIRING (BLACK/RED) 86649-KYJ-L40ZAQty per bike: 1
- 13 EMBLEM, HONDA (BLUE/BLACK) 86831-KPP-T00ZAQty per bike: 1
- 14 STICKER, RIGHT REAR FAIRING (BLACK/RED) 86833-KYJ-L40ZAQty per bike: 1
- 15 STICKER, LEFT REAR FAIRING (BLACK/RED) 86834-KYJ-L40ZAQty per bike: 1
This catalogue is shared by: CBR250R 2013. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
