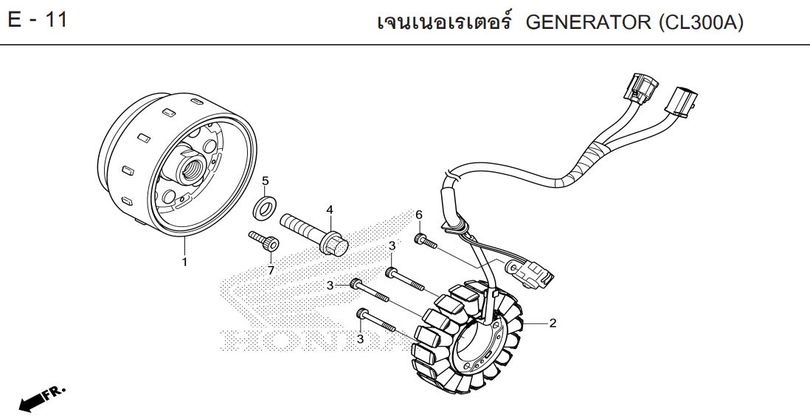

CL300 2025 · E-11 GENERATOR (CL300A)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 WHEEL, CAST (MAG) 31110-K0A-DB1Qty per bike: 1
- 2 STATOR COIL SET 31120-K3S-TA1Qty per bike: 1
- 3 BOLT, 6x30 90001-K0A-DB0Qty per bike: 3
- 4 BOLT, FLANGE, 12x50 90023-KYJ-900Qty per bike: 1
- 5 WASHER, 12.5x30x5 90401-KCY-670Qty per bike: 1
- 6 BOLT, 6x16 96600-06016-00Qty per bike: 2
- 7 BOLT, 8x20 96600-08020-10Qty per bike: 6
