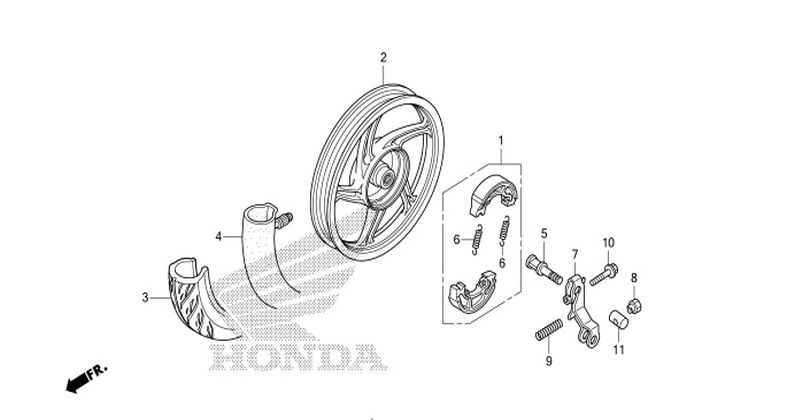

CLICK125i 2014 · F-16-1 REAR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-16-1
- 1 BRAKE SHOE/PAD SET 06430-KWN-900Qty per bike: 1
- 2 WHEEL, REAR MAG 42601-KZR-603ZAQty per bike: 1
- 2 WHEEL, REAR MAG 42601-KZR-606ZAQty per bike: 1
- 2 RIM SET, REAR 42601-KZR-711ZAQty per bike: 1
- 3 TIRE, REAR 90/90-14 M/C 46P 42711-KVG-901Qty per bike: 1
- 3 TIRE, REAR 90/90-14 M/C 46P 42711-KVG-903Qty per bike: 1
- 4 TUBE, TIRE (90/90-14) 42712-KVG-901Qty per bike: 1
- 4 TUBE, TIRE (90/90-14) 42712-KVG-902Qty per bike: 1
- 5 CAM, REAR BRAKE 43141-KZR-600Qty per bike: 1
- 6 SPRING, BRAKE SHOE 43151-329-000Qty per bike: 2
- 7 ARM, REAR BRAKE 43410-KWN-900Qty per bike: 1
- 8 NUT, BRAKE ARM ADJUSTING 43459-GN5-760Qty per bike: 1
- 9 SPRING, REAR BRAKE ARM 43472-KVB-900Qty per bike: 1
- 10 BOLT, FLANGE, 6x32 90112-KVB-900Qty per bike: 1
- 11 PIN, BRAKE ROD B 95015-32001Qty per bike: 1
