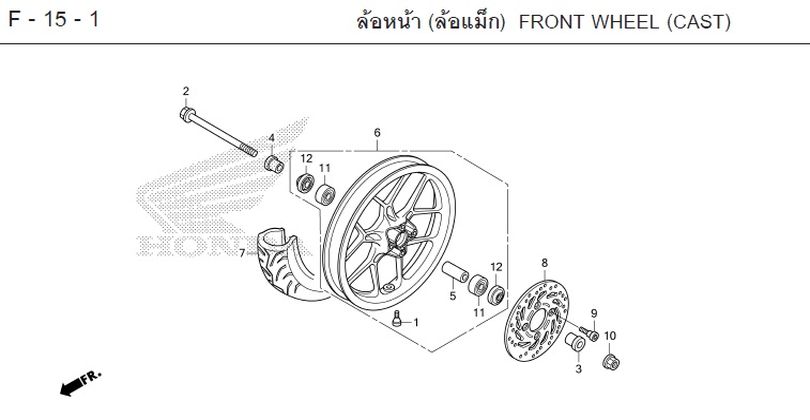

CLICK125i 2020 · F-15-1 FRONT WHEEL (CAST)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-15-1
- 1 VALVE, TIRE (IRC) 42753-GM9-743Qty per bike: 1
- 2 AXLE, FRONT WHEEL 44301-KVG-950Qty per bike: 1
- 3 COLLAR, FRONT WHEEL SIDE 44311-KVB-910Qty per bike: 1
- 4 COLLAR, FRONT WHEEL SIDE 44312-KZR-600Qty per bike: 1
- 5 COLLAR, FRONT AXLE 44620-KVB-910Qty per bike: 1
- 6 FRONT WHEEL SET (ALL COLORS) 44650-K60-T10ZAQty per bike: 1
- 7 TIRE, FRONT 80/90-14 M/C 40P 44711-K60-T11Qty per bike: 1
- 7 TIRE, FRONT 80/90-14 M/C 40P 44711-K60-T12Qty per bike: 1
- 7 TIRE, FRONT 80/90-14 M/C 40P 44711-K60-T13Qty per bike: 1
- 7 TIRE, FRONT (80/90-14 M/C 40P) 44711-K60-T14Qty per bike: 1
- 8 DISK, FRONT BRAKE 45351-K93-N01Qty per bike: 1
- 9 BOLT, BRAKE DISK MOUNTING, 8x24 90105-KGH-900Qty per bike: 4
- 10 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 1
- 11 BEARING, RADIAL BALL (6201U L) (NSK) 91052-K24-901Qty per bike: 2
- 11 BEARING, RADIAL BALL (6201U L) (FAG) 91052-K24-904Qty per bike: 2
- 12 SEAL, DUST, 21x32x5 91251-KZR-601Qty per bike: 2
