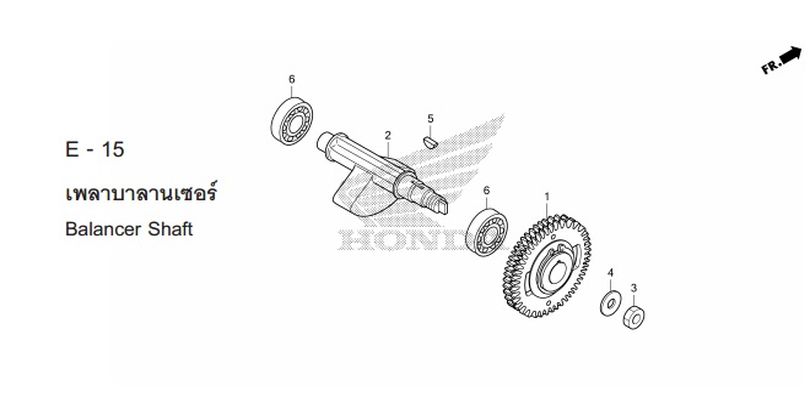

CRF250 2013 · E-15 BALANCER SHAFT
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 GEAR, BALANCER (34T) 13410-KYJ-901Qty per bike: 1
- 2 SHAFT, BALANCER 13421-KYJ-900Qty per bike: 1
- 3 NUT, HEX, 14 mm 90204-KYJ-900Qty per bike: 1
- 4 WASHER, 14.2x24 90433-MEY-670Qty per bike: 1
- 5 KEY, 4 mm 90741-KFB-000Qty per bike: 1
- 6 BEARING, RADIAL BALL, 6204 (SPECIAL) 91008-KYJ-901Qty per bike: 2
This catalogue is shared by: CRF250 2013. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
