CRF250L 2019 · F-32 WIRE HARNESS (CRF250LD)

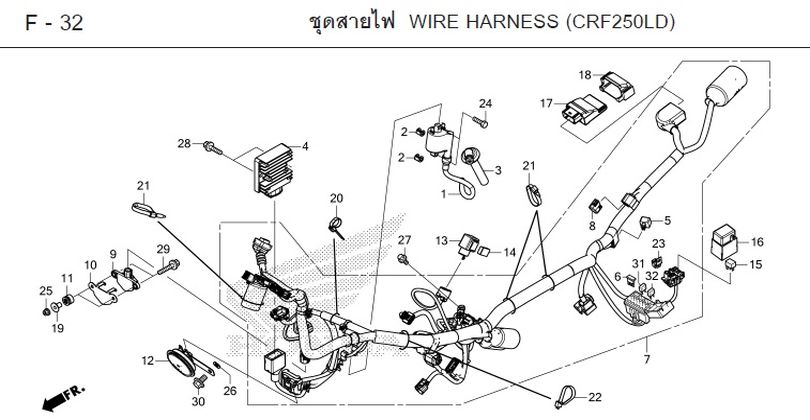

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-32
- 1 COIL, IGNITION 30510-KZZ-901Qty per bike: 1
- 2 WASHER, IGNITION COIL 30520-GFM-900Qty per bike: 2
- 3 CAP, SPARK PLUG 30700-KZZ-901Qty per bike: 1
- 4 RECTIFIER 31600-KVK-901Qty per bike: 1
- 5 RECTIFIER, SILICON 31700-MM8-610Qty per bike: 1
- 6 DIODE, 3-WAY 31730-MAS-601Qty per bike: 1
- 7 WIRE HARNESS 32100-KZZ-D10Qty per bike: 1
- 8 CAP (4P) (RED) 32606-GEV-761Qty per bike: 1
- 9 SENSOR SET, BANK ANGLE (M6) 35160-KVS-751Qty per bike: 1
- 10 STAY, BANK ANGLE SENSOR 35161-KZZ-900Qty per bike: 1
- 11 RUBBER, VIBRATION DAMPER 37244-MM4-000Qty per bike: 2
- 12 HORN (HIGH) 38110-KYJ-901Qty per bike: 1
- 13 RELAY, TURN SIGNAL (MITSUBA) 38301-KYJ-641Qty per bike: 1
- 14 RUBBER, TURN SIGNAL RELAY DAMPER (MITSUBA) 38306-KK4-000Qty per bike: 1
- 15 RELAY, MAIN (MICRO ISO 4P) (OMRON) 38501-KWN-901Qty per bike: 1
- 16 COVER, MAIN RELAY (2P) 38506-KZZ-900Qty per bike: 1
- 17 ECU 38770-KZZ-J01Qty per bike: 1
- 18 RUBBER, ECU BOX DAMPER 38771-KTY-D30Qty per bike: 1
- 19 COLLAR 77302-473-000Qty per bike: 2
- 20 BAND, WIRE 90650-KW3-000Qty per bike: 1
- 21 BAND, WIRE, 165 mm (BLACK) 90651-KV6-003Qty per bike: 3
- 22 BAND, WIRE HARNESS 90651-MA6-720Qty per bike: 1
- 24 BOLT, HEX, 6x20 92101-06020-4JQty per bike: 2
- 25 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 2
- 26 WASHER, 8 mm 94102-08000Qty per bike: 1
- 27 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 1
- 28 BOLT, FLANGE, 6x22 95701-06022-00Qty per bike: 2
- 29 BOLT, FLANGE, 6x30 95701-06030-00Qty per bike: 2
- 30 BOLT, FLANGE, 8x14 95701-08014-00Qty per bike: 1
- 31 FUSE (5A) 98200-40500Qty per bike: 2
- 32 FUSE, MINI (10A) 98200-41000Qty per bike: 6
