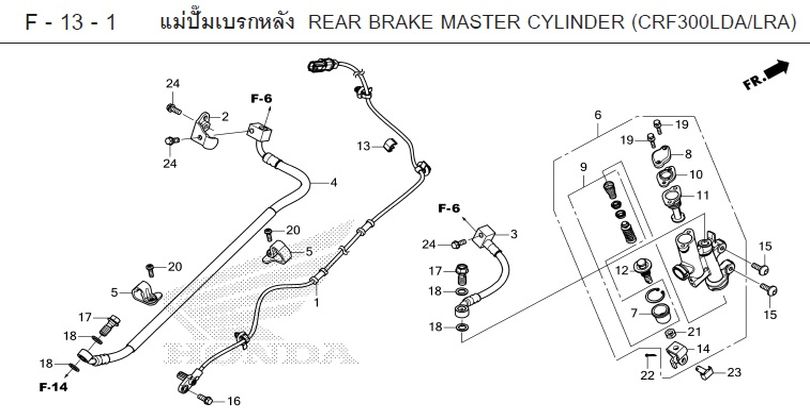

CRF300RALLY 2025 · F-13-1 13-1 REAR BRAKE MASTER CYLINDER (CRF300LDA/LRA)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-13-1
- 1 THROTTLE SENSOR SET 38510-K1T-E11Qty per bike: 1
- 2 STAY SET 43151-KZZ-J80Qty per bike: 1
- 3 HOSE, REAR BRAKE 43310-K1T-E11Qty per bike: 1
- 4 HOSE, REAR BRAKE 43313-K1T-EM1Qty per bike: 1
- 5 GUIDE, OIL HOSE 43468-MJL-D70Qty per bike: 2
- 6 MASTER CYLINDER SET, REAR BRAKE 43500-K1T-E11Qty per bike: 1
- 7 BOOT, DUST 43504-MB2-006Qty per bike: 1
- 8 CAP, FRONT BRAKE RESERVOIR 43513-K1T-E11Qty per bike: 1
- 9 PISTON SET, REAR BRAKE MASTER CYLINDER 43520-MJ6-315Qty per bike: 1
- 10 PLATE, DIAPHRAGM 43521-K1T-E11Qty per bike: 1
- 11 DIAPHRAGM 43522-K1T-E11Qty per bike: 1
- 12 ROD, REAR BRAKE MASTER CYLINDER 43530-KZZ-901Qty per bike: 1
- 13 CLIP, MOUNTING 45165-MFN-D10Qty per bike: 1
- 14 JOINT, BRAKE MASTER CYLINDER ROD 46504-KV6-702Qty per bike: 1
- 15 BOLT, REAR BRAKE MASTER CYLINDER SET MOUNTING, 6x17 90106-KGH-600Qty per bike: 2
- 16 BOLT, FLANGE, 6x14 90117-KZZ-J80Qty per bike: 1
- 17 BOLT, OIL (BRAKE), 10x22 90145-MS9-612Qty per bike: 2
- 18 WASHER, SEALING 90545-300-000Qty per bike: 4
- 19 BOLT, WASHER, 4x16 93401-04016-00Qty per bike: 2
- 20 SCREW, 5x16 93500-05016-0GQty per bike: 2
- 21 NUT, HEX, 8 mm 94002-08000-0SQty per bike: 1
- 22 PIN, COTTER, 2.0x12 94201-20120Qty per bike: 1
- 23 PIN D, BRAKE MASTER CYLINDER JOINT 95015-54000Qty per bike: 1
- 24 BOLT, FLANGE, 6x14 96001-06014-00Qty per bike: 3
