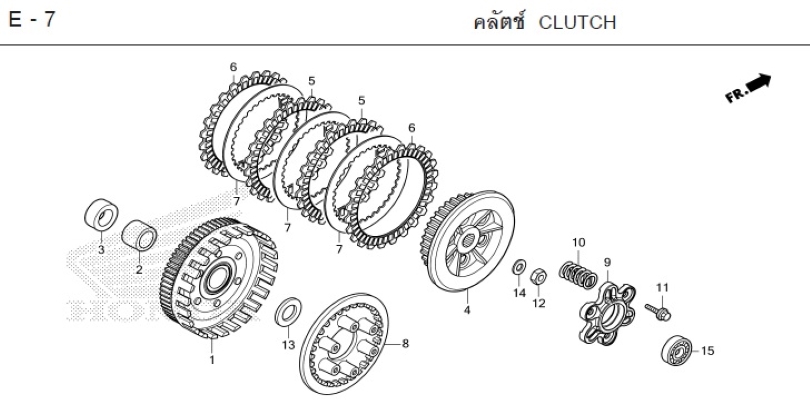

DAX125 2025 · E-7 CLUTCH
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-7
- 1 CLUTCH OUTER 22100-K2W-T01Qty per bike: 1
- 2 COLLAR, CLUTCH OUTER 22115-KPH-900Qty per bike: 1
- 3 COLLAR, CLUTCH OUTER 22116-K1M-T00Qty per bike: 1
- 4 CLUTCH CENTER (34T) 22121-K0G-T21Qty per bike: 1
- 5 PLATE, CLUTCH FRICTION 22201-K0G-T21Qty per bike: 2
- 5 GEAR, CLUTCH 22201-K3G-C11Qty per bike: 2
- 6 PLATE, CLUTCH FRICTION 22201-K1M-T01Qty per bike: 2
- 7 PLATE, CLUTCH 22321-KE8-000Qty per bike: 3
- 8 PLATE, CLUTCH PRESSURE 22350-KPH-900Qty per bike: 1
- 9 PLATE, CLUTCH LIFTER 22361-K1M-T01Qty per bike: 1
- 10 SPRING, CLUTCH 22401-K0G-T21Qty per bike: 6
- 11 BOLT, FLANGE, SPECIAL, 6x20 90050-KPH-900Qty per bike: 3
- 12 NUT, HEX, 14 mm 90204-KYJ-900Qty per bike: 1
- 13 WASHER, THRUST, 17 mm 90403-KPH-900Qty per bike: 1
- 14 WASHER, 14.2x26x3 90432-KPT-A00Qty per bike: 1
- 15 BEARING, RADIAL BALL, 6200 96100-62000-00Qty per bike: 1
