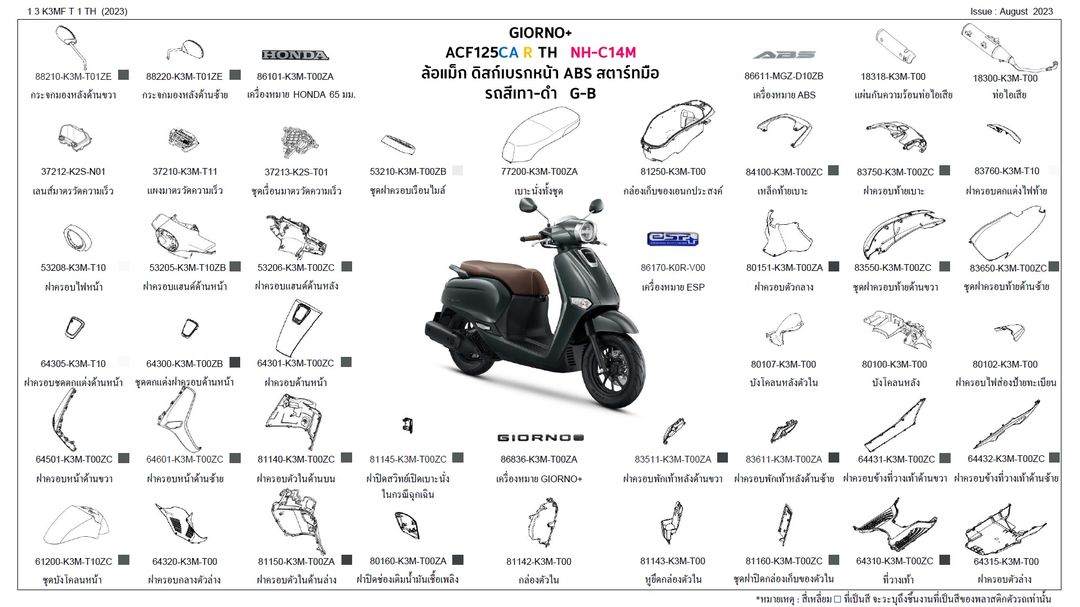

GIORNO 2024 · F-51-1 NH-C14M · G-B
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-51-1
- 1 MIRROR, RIGHT REARVIEW (GRAY/BLACK) 88210-K3M-T01ZEQty per bike: 1
- 2 MIRROR, LEFT REARVIEW (GRAY/BLACK) 88220-K3M-T01ZEQty per bike: 1
- 3 MARK, HONDA (65 mm) (ALL COLORS) 86101-K3M-T00ZAQty per bike: 1
- 4 MARK, ABS (RIGHT ONLY) (BLUE) (BLUE/BLACK) 86611-MGZ-D10ZBQty per bike: 1
- 5 GUARD, EXHAUST PIPE HEAT 18318-K3M-T00Qty per bike: 1
- 6 EXHAUST PIPE 18300-K3M-T00Qty per bike: 1
- 7 COVER, METER 37212-K2S-N01Qty per bike: 1
- 8 PANEL, METER (KPH) 37210-K3M-T11Qty per bike: 1
- 9 SPEEDOMETER HOUSING SET 37213-K2S-T01Qty per bike: 1
- 10 METER HOUSING COVER SET (ALL COLORS) 53210-K3M-T00ZBQty per bike: 1
- 11 SEAT ASSY (ALL COLORS) 77200-K3M-T00ZAQty per bike: 1
- 12 BOX, STORAGE 81250-K3M-T00Qty per bike: 1
- 13 RAIL, REAR GRAB (GRAY/BLACK) 84100-K3M-T00ZCQty per bike: 1
- 14 COVER, CENTER REAR (GRAY/BLACK) 83750-K3M-T00ZCQty per bike: 1
- 15 COVER, TAILLIGHT DECORATIVE 83760-K3M-T10Qty per bike: 1
- 16 COVER, HEADLIGHT 53208-K3M-T10Qty per bike: 1
- 17 COVER, FRONT HANDLE (GRAY/BLACK) 53205-K3M-T10ZBQty per bike: 1
- 18 COVER, FRONT HANDLE (GRAY/BLACK) 53206-K3M-T00ZCQty per bike: 1
- 19 MARK, ESP 86170-K0R-V00Qty per bike: 1
- 20 COVER, CENTER (ALL COLORS) 80151-K3M-T00ZAQty per bike: 1
- 21 COVER SET, RIGHT BODY SIDE (GRAY-BLACK) 83550-K3M-T00ZCQty per bike: 1
- 22 COVER SET, LEFT BODY SIDE (WL) 83650-K3M-T00ZCQty per bike: 1
- 23 COVER, FRONT COVER DECORATIVE SET 64305-K3M-T10Qty per bike: 1
- 24 DECORATIVE SET, FRONT COVER (ALL COLORS) 64300-K3M-T00ZBQty per bike: 1
- 25 COVER, UPPER FRONT (GRAY/BLACK) 64301-K3M-T00ZCQty per bike: 1
- 26 FENDER, REAR INNER 80107-K3M-T00Qty per bike: 1
- 27 FENDER, REAR 80100-K3M-T00Qty per bike: 1
- 28 COVER, LICENSE LIGHT 80102-K3M-T00Qty per bike: 1
- 29 COVER, RIGHT FRONT (GRAY/BLACK) 64501-K3M-T00ZCQty per bike: 1
- 30 COVER, LEFT FRONT (GRAY/BLACK) 64601-K3M-T00ZCQty per bike: 1
- 31 COVER, INNER UPPER (GRAY/BLACK) 81140-K3M-T00ZCQty per bike: 1
- 32 COVER, EMERGENCY SEAT OPENER SWITCH 81145-K3M-T00ZCQty per bike: 1
- 33 MARK, REAR COVER (GIORNO+) 86836-K3M-T00ZAQty per bike: 2
- 34 COVER, RIGHT REAR STEP OUTER 83511-K3M-T00ZAQty per bike: 1
- 35 COVER, LEFT REAR STEP OUTER 83611-K3M-T00ZAQty per bike: 1
- 36 COVER, RIGHT FLOOR SIDE 64431-K3M-T00ZCQty per bike: 1
- 37 COVER, LEFT FOOTREST SIDE 64432-K3M-T00ZCQty per bike: 1
- 38 FENDER, FRONT (WL) (GRAY/BLACK) 61200-K3M-T10ZCQty per bike: 1
- 39 COVER, CENTER LOWER 64320-K3M-T00Qty per bike: 1
- 40 COVER, INNER LOWER (ALL COLORS) 81150-K3M-T00ZAQty per bike: 1
- 41 LID, FUEL FILLER 80160-K3M-T00ZAQty per bike: 1
- 42 BOX, INNER 81142-K3M-T00Qty per bike: 1
- 43 LUG, INNER BOX 81143-K3M-T00Qty per bike: 1
- 44 LID SET, INNER STORAGE BOX (GRAY-BLACK) 81160-K3M-T00ZCQty per bike: 1
- 45 STEP (ALL COLORS) 64310-K3M-T00ZCQty per bike: 1
- 46 COVER, LOWER 64315-K3M-T00Qty per bike: 1
