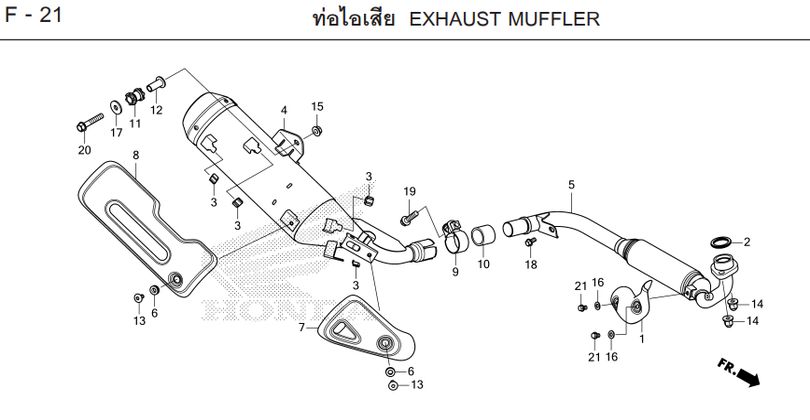

MSX GROM 2023 · F-21 EXHAUST MUFFLER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 COVER, EXHAUST PIPE 18240-K26-G00Qty per bike: 1
- 2 GASKET, EXHAUST PIPE 18291-GE2-920Qty per bike: 1
- 3 RUBBER, MUFFLER HEAT GUARD 18293-MCA-A20Qty per bike: 4
- 4 MUFFLER SET 18300-K26-G00Qty per bike: 1
- 4 PART, EXHAUST PIPE 18300-K26-L00Qty per bike: 1
- 5 EXHAUST PIPE 18320-K26-G00Qty per bike: 1
- 5 JOINT, EXHAUST PIPE 18320-K26-L00Qty per bike: 1
- 6 RUBBER, EXHAUST HEAT GUARD 18345-MBT-610Qty per bike: 2
- 7 GUARD, MUFFLER B 18354-K26-G00Qty per bike: 1
- 8 GUARD, MUFFLER A 18355-K26-G00Qty per bike: 1
- 9 BAND, MUFFLER 18371-K26-900Qty per bike: 1
- 10 GASKET, MUFFLER 18391-HB7-000Qty per bike: 1
- 11 RUBBER, MUFFLER MOUNTING LUG 18421-K26-B00Qty per bike: 1
- 12 COLLAR, MUFFLER MOUNTING LUG 18422-K26-900Qty per bike: 1
- 13 SCREW, 6x12 90113-KTA-920Qty per bike: 2
- 14 NUT, HEX CAP, 8 mm 90304-KPH-700Qty per bike: 2
- 15 NUT, FLANGE, 8 mm 94050-08000Qty per bike: 1
- 16 WASHER, 6 mm 94101-06200Qty per bike: 2
- 17 WASHER, 8 mm 94103-08200Qty per bike: 1
- 18 BOLT, FLANGE, 8x16 95701-08016-04Qty per bike: 1
- 19 BOLT, FLANGE, 8x32 95701-08032-02Qty per bike: 1
- 20 BOLT, FLANGE, 8x45 95701-08045-02Qty per bike: 1
- 21 BOLT, FLANGE, 6x8 96001-06008-02Qty per bike: 2
This catalogue is shared by: MSX GROM 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
