MSX125SF 2016 · E-14 TRANSMISSION

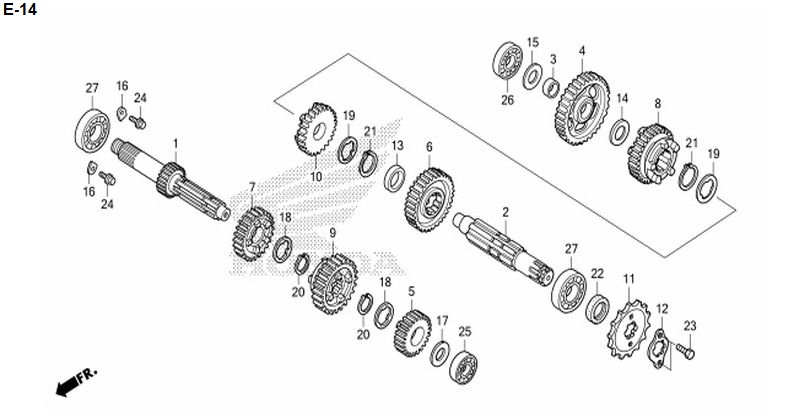

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-14
- 1 SHAFT, DRIVE (14T) 23211-KPH-900Qty per bike: 1
- 2 SHAFT, DRIVEN 23221-KPH-900Qty per bike: 1
- 3 BUSH, 15 mm 23415-KPH-900Qty per bike: 1
- 4 GEAR, DRIVEN 1 (35T) 23421-KPH-900Qty per bike: 1
- 5 GEAR, DRIVE 2 (20T) 23431-KPH-700Qty per bike: 1
- 6 GEAR, DRIVEN 2 (31T) 23441-KPH-900Qty per bike: 1
- 7 GEAR, DRIVE 3 (20T) 23451-KPH-700Qty per bike: 1
- 8 GEAR, DRIVEN 3 (23T) 23461-KPH-900Qty per bike: 1
- 9 GEAR, DRIVE 4 (26T) 23471-KPH-700Qty per bike: 1
- 10 GEAR, DRIVEN 4 (24T) 23481-KPH-700Qty per bike: 1
- 11 SPROCKET, DRIVE (15T) 23801-K26-900Qty per bike: 1
- 12 PLATE, FRONT SPROCKET FIXING 23802-GN5-910Qty per bike: 1
- 13 COLLAR, 5.1 mm 23911-KPG-T00Qty per bike: 1
- 14 WASHER, THRUST, 15 mm 90412-187-000Qty per bike: 1
- 15 WASHER, SPECIAL, 12x23 90412-KPH-900Qty per bike: 1
- 16 PLATE, BEARING LOCK 90441-KRM-840Qty per bike: 2
- 17 WASHER, SPECIAL, 12 mm 90452-KGH-900Qty per bike: 1
- 18 RING, SNAP, 17 mm 90461-115-000Qty per bike: 2
- 19 RING, SNAP, 20x1.2 90461-GB4-770Qty per bike: 2
- 20 CLIP, OUTER LOCK, 17 mm 90601-001-000Qty per bike: 2
- 21 WASHER, LOCK, 20 mm 90605-200-000Qty per bike: 2
- 22 OIL SEAL, 17x30x5 91204-KPH-901Qty per bike: 1
- 23 BOLT, HEX, 6x10 92101-06010-0AQty per bike: 2
- 24 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
- 25 BEARING, RADIAL BALL, 6001 96100-60010-00Qty per bike: 1
- 26 BEARING, RADIAL BALL, 6201 96100-62010-00Qty per bike: 1
- 27 BEARING, RADIAL BALL, 6203 96100-62030-00Qty per bike: 2
