WAVE 125i 2019 · F-10-1 10-1 FRONT WHEEL(CAST)

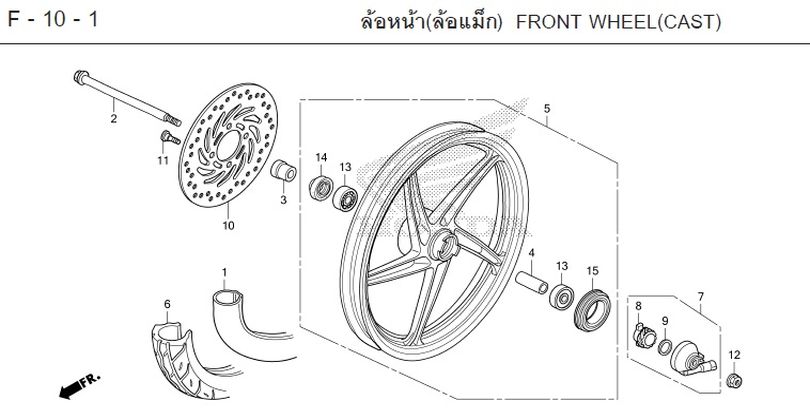

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-10-1
- 1 TUBE, TIRE (70/90-17) 42712-KPH-702Qty per bike: 1
- 2 AXLE, FRONT WHEEL 44301-KWW-640Qty per bike: 1
- 3 COLLAR, FRONT WHEEL SIDE 44311-KPH-900Qty per bike: 1
- 4 COLLAR, FRONT AXLE 44620-KPH-950Qty per bike: 1
- 5 FRONT WHEEL SET (HPDC) (78x) (ALL COLORS) 44650-K73-T40ZAQty per bike: 1
- 5 FRONT WHEEL SET (ALL COLORS) 44650-KYZ-T50ZAQty per bike: 1
- 6 TIRE, FRONT 70/90-17 M/C 38P 44711-KWZ-902Qty per bike: 1
- 7 GEAR SET, SPEEDOMETER 44800-KWW-650Qty per bike: 1
- 8 GEAR, SPEEDOMETER (19T) 44806-KWB-600Qty per bike: 1
- 9 WASHER, SPEEDOMETER GEAR 45001-KWW-640Qty per bike: 1
- 10 DISK, FRONT BRAKE 45251-K92-D01Qty per bike: 1
- 10 DISK, FRONT BRAKE 45251-KWW-651Qty per bike: 1
- 11 BOLT, BRAKE DISK MOUNTING, 8x24 90105-KGH-900Qty per bike: 4
- 12 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 1
- 13 BEARING, RADIAL BALL (6201UU) (72V) 91051-K03-H32Qty per bike: 2
- 13 BEARING 91051-K03-H33Qty per bike: 2
- 13 BEARING, RADIAL BALL (6201U L) (NSK) 91052-K24-901Qty per bike: 2
- 13 BEARING, RADIAL BALL (6201U L) (FAG) 91052-K24-904Qty per bike: 2
- 14 SEAL, DUST, 21x37x7 91251-KPH-901Qty per bike: 1
- 15 SEAL, DUST, 42x54x7 91251-KWB-601Qty per bike: 1
