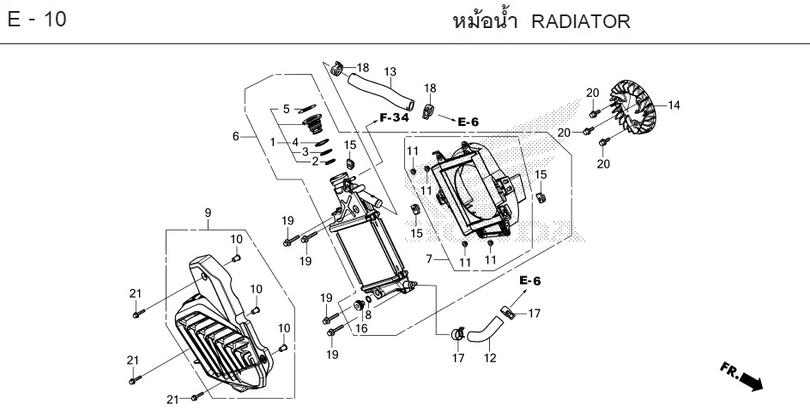

ADV160 2023 · E-10 RADIATOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10
- 1 RADIATOR CAP SET 19037-K27-V51Qty per bike: 1
- 2 O-RING A 19049-K27-V51Qty per bike: 1
- 3 O-RING B 19051-K27-V51Qty per bike: 1
- 4 O-RING C 19052-K27-V51Qty per bike: 1
- 5 STICKER, RADIATOR LID 19055-K27-V51Qty per bike: 1
- 6 RADIATOR SET 19100-K2S-T00Qty per bike: 1
- 7 RADIATOR MOUNTING HOUSING SET 19105-K2S-N00Qty per bike: 1
- 8 SEAL, COOLANT DRAIN BOLT 19109-GET-003Qty per bike: 1
- 9 GRILL, RADIATOR GUARD 19150-K2S-N00Qty per bike: 1
- 10 COLLAR 19416-K01-900Qty per bike: 3
- 11 COLLAR 19416-KEY-900Qty per bike: 4
- 12 HOSE A, WATER 19501-K0R-V00Qty per bike: 1
- 13 HOSE B, WATER 19502-K40-A00Qty per bike: 1
- 14 FAN, COOLING 19510-K1F-V00Qty per bike: 1
- 15 NUT 84601-HA7-670Qty per bike: 3
- 16 BOLT, COOLANT DRAIN 90103-GET-003Qty per bike: 1
- 17 BAND, HOSE, (D20) 90602-K27-V01Qty per bike: 2
- 18 BAND, WATER HOSE, 24 mm 90701-KWN-901Qty per bike: 2
- 19 BOLT, WASHER, 6X30 93401-06030-08Qty per bike: 4
- 20 BOLT, FLANGE, 6x16 95701-06016-00Qty per bike: 3
- 21 BOLT, FLANGE, 6x25 96001-06025-07Qty per bike: 3
