ADV160 2023 · E-13 TRANSMISSION

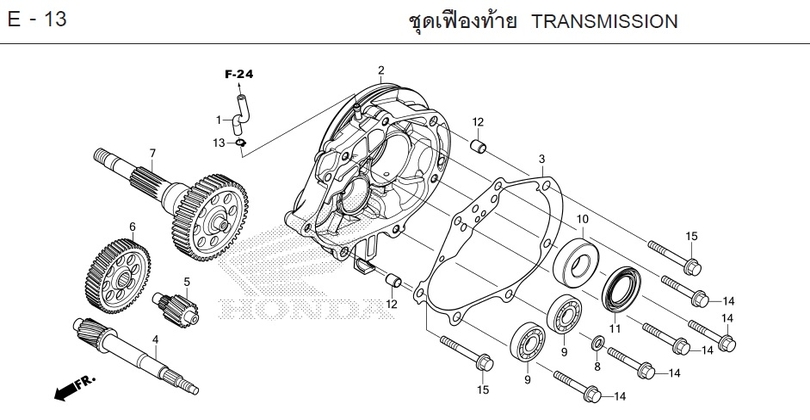

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 TUBE, BREATHER 11211-K1N-V00Qty per bike: 1
- 2 HOUSING, FINAL GEAR 21200-K2S-N10Qty per bike: 1
- 3 GASKET, FINAL GEAR CASE (NICHIAS) 21395-K1N-V01Qty per bike: 1
- 4 SHAFT, DRIVE (18T) 23411-K0W-NA0Qty per bike: 1
- 5 SHAFT, DRIVEN (13T) 23421-K1Z-J10Qty per bike: 1
- 6 GEAR, IDLE (51T) 23422-K1Z-J10Qty per bike: 1
- 7 GEAR, FINAL (44T) 23430-K1Z-J10Qty per bike: 1
- 8 WASHER, SEALING, 8 mm 90495-MN5-000Qty per bike: 1
- 9 BEARING, RADIAL BALL, 6202 (NTN) 91004-KZR-601Qty per bike: 2
- 10 BEARING, RADIAL BALL, 6205UU (FAG) 91009-K2S-N01Qty per bike: 1
- 11 OIL SEAL, 34x52x7 91204-K59-A11Qty per bike: 1
- 12 PIN, DOWEL, 10x12 94301-10120Qty per bike: 2
- 13 CLIP, TUBE (C9) 95002-50000Qty per bike: 1
- 14 BOLT, FLANGE, 8x45 95701-08045-00Qty per bike: 5
- 15 BOLT, FLANGE, 8x55 95701-08055-00Qty per bike: 2
