ADV350 2022 · E-10 LEFT CRANKCASE COVER

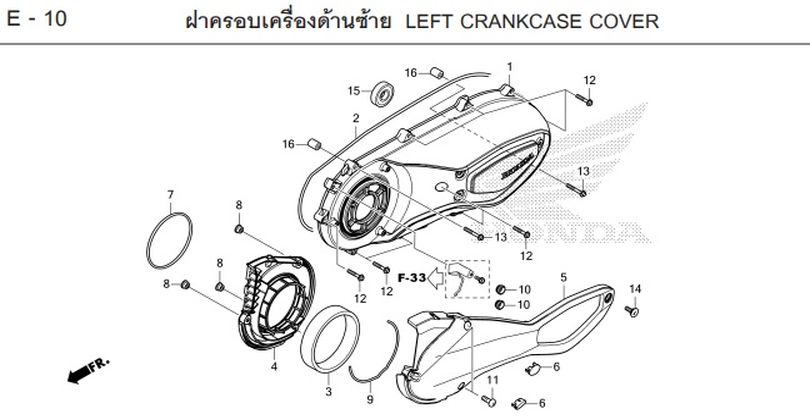

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10
- 1 COVER, LEFT CRANKCASE 11341-K1B-T00Qty per bike: 1
- 2 GASKET, LEFT CRANKCASE COVER 11395-K1B-T00Qty per bike: 1
- 3 ELEMENT, V-BELT CHAMBER AIR CLEANER 19412-K1B-T00Qty per bike: 1
- 4 TUBE, V-BELT CHAMBER AIR 19413-K1B-T00Qty per bike: 1
- 5 CAP, V-BELT CHAMBER AIR TUBE 19414-K1B-T00Qty per bike: 1
- 6 CAP, V-BELT CHAMBER AIR TUBE HOLE 19415-K1B-T00Qty per bike: 2
- 7 SEAL, V-BELT CHAMBER AIR TUBE 19415-KTW-900Qty per bike: 1
- 8 COLLAR 19416-KEY-900Qty per bike: 3
- 9 GASKET, V-BELT CHAMBER AIR TUBE COVER 19649-K1B-T00Qty per bike: 1
- 10 RUBBER, TAILLIGHT 83501-MG7-000Qty per bike: 2
- 11 BOLT, SPECIAL, 6x18 90006-K04-930Qty per bike: 3
- 12 BOLT, FLANGE, 6x32 90053-K1B-T00Qty per bike: 9
- 13 BOLT, FLANGE, 6x40 90054-K1B-T00Qty per bike: 2
- 14 BOLT, 6x18 90101-K29-900Qty per bike: 1
- 15 BEARING, RADIAL BALL, 6004UU 91008-K1B-T01Qty per bike: 1
- 16 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
