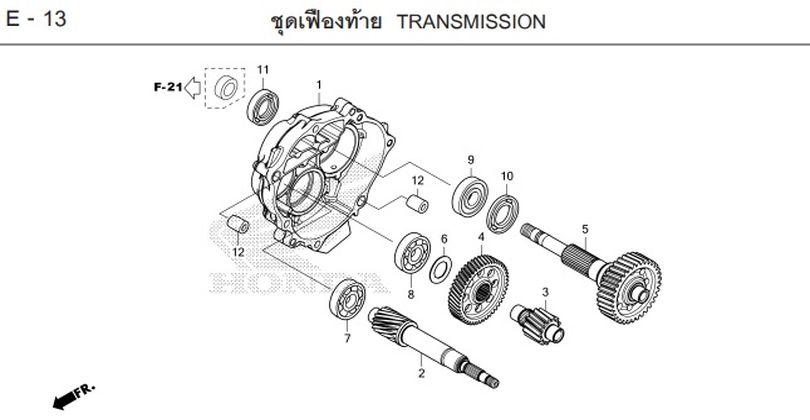

ADV350 2022 · E-13 TRANSMISSION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 HOUSING, FINAL GEAR 21301-K1B-T00Qty per bike: 1
- 2 SHAFT, DRIVE (16T) 23411-K1B-T00Qty per bike: 1
- 3 SHAFT, DRIVEN (13T) 23421-K1B-T00Qty per bike: 1
- 4 GEAR, DRIVEN (47T) 23422-K1B-T00Qty per bike: 1
- 5 GEAR, FINAL (34T) 23430-K1B-T00Qty per bike: 1
- 6 WASHER, SPECIAL, 20 mm 90451-HM7-000Qty per bike: 1
- 7 BEARING, RADIAL BALL, 6204 91002-K1B-T01Qty per bike: 1
- 8 BEARING, RADIAL BALL, 6304 91003-K1B-T01Qty per bike: 1
- 9 BEARING, RADIAL BALL, 28x58x16 91006-K1B-T01Qty per bike: 1
- 10 OIL SEAL, 37x58x5 91203-K1B-T01Qty per bike: 1
- 11 SEAL, DUST, 36x52x7 91252-MKF-D41Qty per bike: 1
- 12 PIN, DOWEL A, 12x16 94301-12160Qty per bike: 2
This catalogue is shared by: ADV350 2022. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
