ADV350 2025 · E-8 OIL PUMP

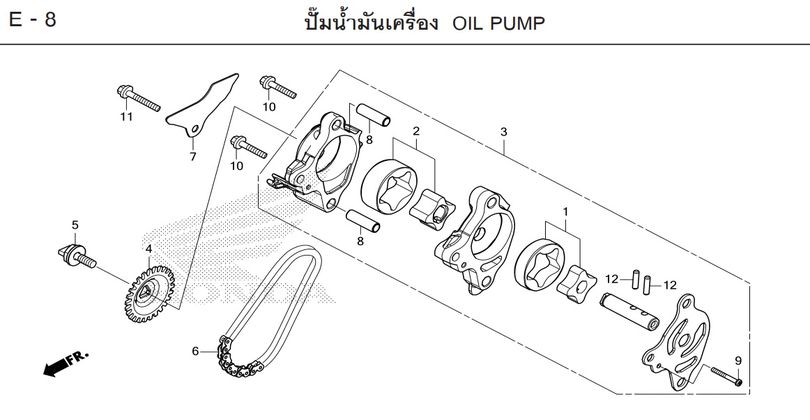

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-8
- 1 INNER ROTOR SET 15021-K1B-T00Qty per bike: 1
- 2 OUTER ROTOR SET 15022-K1B-T00Qty per bike: 1
- 3 OIL PUMP SET 15100-K1B-T00Qty per bike: 1
- 4 GEAR, OIL PUMP DRIVE (26T) 15134-K1B-T00Qty per bike: 1
- 4 GEAR, OIL PUMP DRIVE (26T) 15134-K1B-T20Qty per bike: 1
- 5 BOLT, SPECIAL, OIL PUMP 15135-K1B-T00Qty per bike: 1
- 6 CHAIN, OIL PUMP DRIVE DIDSCZ0404SV 15141-K1B-T01Qty per bike: 1
- 7 PLATE, OIL BAFFLE 15711-K1B-T00Qty per bike: 1
- 7 PLATE, OIL BAFFLE 15711-K1B-T20Qty per bike: 1
- 8 PIN, DOWEL, 8x26.4 91103-KT7-000Qty per bike: 2
- 9 SCREW, 3x25 93500-03025-0AQty per bike: 1
- 10 BOLT, FLANGE, 6x45 95701-06045-00Qty per bike: 2
- 11 BOLT, FLANGE, 6x65 95701-06065-00Qty per bike: 1
- 12 BEARING, NEEDLE ROLLER, 4x15.8 96220-40158Qty per bike: 2
