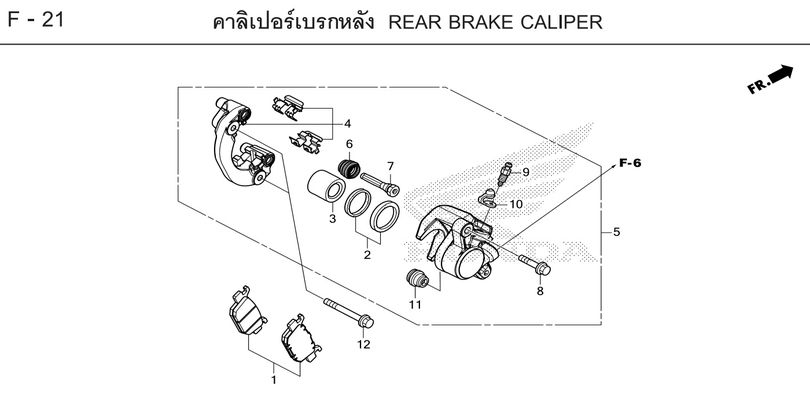

ADV350 2025 · F-21 REAR BRAKE CALIPER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 SHOE/PAD SET, REAR BRAKE 06435-K0B-T01Qty per bike: 1
- 2 CALIPER PISTON SEAL SET 06451-MA7-405Qty per bike: 1
- 3 PISTON, CALIPER 43107-K40-F11Qty per bike: 1
- 4 CALIPER BRACKET SET, REAR BRAKE 43110-K1B-T01Qty per bike: 1
- 5 CALIPER SET, REAR BRAKE 43150-K1B-T01Qty per bike: 1
- 6 BOOT, DUST 43234-S04-003Qty per bike: 1
- 7 PIN B 43235-HP1-006Qty per bike: 1
- 8 BOLT, FLANGE, 8x26 43240-KSV-J01Qty per bike: 1
- 9 SCREW, AIR BLEED (NISSIN) 43352-568-003Qty per bike: 1
- 10 CAP, AIR BLEED SCREW 43353-461-771Qty per bike: 1
- 11 BOOT, DUST B 45133-MA3-006Qty per bike: 1
- 12 BOLT, FLANGE, 8x45 90131-K1B-T00Qty per bike: 2
