AIR BLADE 2006 · F-3

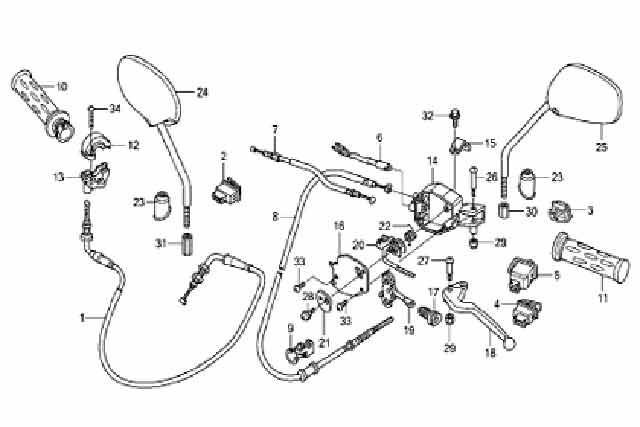

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-3
- 1 CABLE, THROTTLE 17910-KVG-900Qty per bike: 1
- 2 SWITCH ASSY 35160-KPH-971Qty per bike: 1
- 3 SWITCH ASSY 35170-KPH-651Qty per bike: 1
- 4 SWITCH, HORN 35180-KPH-971Qty per bike: 1
- 5 SWITCH, TURN SIGNAL 35200-KVB-900Qty per bike: 1
- 6 SWITCH SET, FRONT STOP LIGHT 35340-KPH-901Qty per bike: 1
- 7 CABLE, FRONT BRAKE 43440-KVB-920Qty per bike: 1
- 8 CABLE, REAR BRAKE 43450-KVG-910Qty per bike: 1
- 9 CLAMP, REAR BRAKE CABLE 43455-KVB-900Qty per bike: 1
- 10 GRIP, THROTTLE 53140-KVB-900Qty per bike: 1
- 11 RUBBER, LEFT HANDLE GRIP 53166-KVB-900Qty per bike: 1
- 12 HOLDER, UPPER THROTTLE GRIP 53167-KFM-900Qty per bike: 1
- 13 HOLDER, LOWER THROTTLE GRIP 53168-KFM-900Qty per bike: 1
- 14 HOLDER, REAR BRAKE LEVER 53172-KCW-J10Qty per bike: 1
- 15 HOLDER, REAR BRAKE LEVER HOUSING 53173-KVB-920Qty per bike: 1
- 16 COVER, REAR BRAKE LEVER HOLDER 53173-GBL-871Qty per bike: 1
- 17 RUBBER, DUST 53176-GBL-870Qty per bike: 1
- 18 LEVER, REAR BRAKE 53178-KVB-920Qty per bike: 1
- 19 BRAKE FORCE DISTRIBUTOR 53184-KCW-J10Qty per bike: 1
- 20 LOCK, REAR BRAKE LEVER 53185-KVB-920Qty per bike: 1
- 21 PLATE, REAR BRAKE LEVER HOLDER COVER CLOSING 53186-GBL-870Qty per bike: 1
- 22 SPRING, REAR BRAKE LEVER LOCK RETURN 53188-KVB-920Qty per bike: 1
- 23 COVER, RUBBER 88114-KVB-900Qty per bike: 2
- 24 MIRROR, RIGHT REARVIEW 88210-KVB-900Qty per bike: 1
- 26 SCREW, FRONT BRAKE LEVER PIVOT 90115-GBL-870Qty per bike: 1
- 27 SCREW, PIVOT MOUNTING 90115-147-000Qty per bike: 1
- 28 SCREW 5X13 90117-MN5-000Qty per bike: 1
- 29 NUT, HEX, 5 mm 90302-435-761Qty per bike: 2
- 30 NUT 90314-KFL-890Qty per bike: 1
- 31 NUT, LOCK 90314-KVB-900Qty per bike: 1
- 32 BOLT, WASHER, 6x20 93401-06020-00Qty per bike: 1
- 33 SCREW, 5x12 93500-05012-0HQty per bike: 2
- 34 SCREW, 5x25 93500-05025-0GQty per bike: 1
