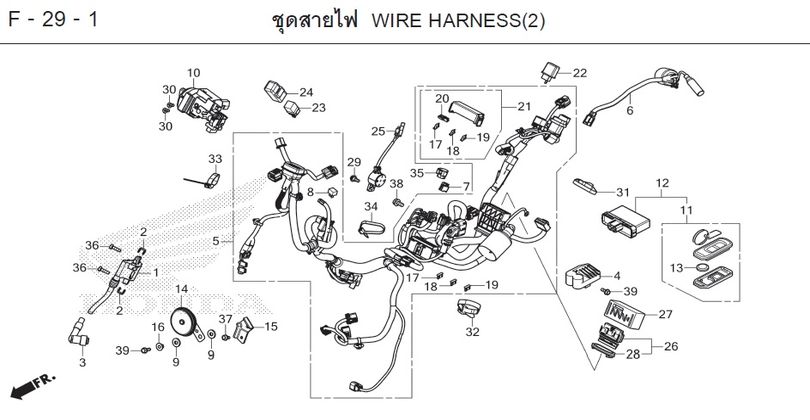

C125 2026 · F-29-1 29-1 WIRE HARNESS(2)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-29-1
- 1 COIL, IGNITION 30510-K0G-T21Qty per bike: 1
- 2 WASHER, IGNITION COIL 30520-GFM-900Qty per bike: 2
- 3 CAP, SPARK PLUG 30700-K0G-901Qty per bike: 1
- 4 REGULATOR, RECTIFIER 31600-K2E-T01Qty per bike: 1
- 5 WIRE HARNESS 32100-K0G-T60Qty per bike: 1
- 5 WIRE HARNESS COMP 32100-K0G-T80Qty per bike: 1
- 6 WIRE 32108-K0G-T20Qty per bike: 1
- 7 TERMINAL 32144-MKC-A00Qty per bike: 1
- 8 TERMINAL, DIODE (2P) (3A) 32146-S84-003Qty per bike: 1
- 9 RUBBER, HORN STAY 33714-KL3-620Qty per bike: 2
- 10 KEY SWITCH SET 35100-K0G-T21Qty per bike: 1
- 11 REMOTE KEY SET 35121-K0G-T60Qty per bike: 1
- 12 CONTROL SET 35141-K0G-T60Qty per bike: 1
- 13 BATTERY (CR2032) (MURATA) 35148-K1W-D00Qty per bike: 1
- 13 BATTERY (CR2032) (PANASONIC) 35148-K78-N10Qty per bike: 1
- 13 BATTERY (CR2032) (MAXELL) 72148-S04-000Qty per bike: 1
- 14 HORN (HIGH) 38110-K1A-M01Qty per bike: 1
- 15 HORN 38111-K0G-T60Qty per bike: 1
- 16 COLLAR, HORN STAY 38117-KYZ-T00Qty per bike: 1
- 17 FUSE (7.5A) 38221-SNA-A31Qty per bike: 3
- 18 FUSE (10A) 38221-SNA-A41Qty per bike: 2
- 19 FUSE (15A) 38221-SNA-A51Qty per bike: 2
- 20 PULLER, FUSE 38235-SNA-A01Qty per bike: 1
- 21 COVER, FUSE BOX 38255-K0G-D21Qty per bike: 1
- 21 COVER, FUSE BOX 38255-K0G-T21Qty per bike: 1
- 22 RELAY, TURN SIGNAL (LED) 38301-KZZ-J01Qty per bike: 1
- 23 RELAY, STARTER 38501-KVB-901Qty per bike: 1
- 24 RUBBER, STARTER RELAY DAMPER (HONDALOCK) 38506-KWW-711Qty per bike: 1
- 25 BUZZER (NIKKO) 38720-K0W-T01Qty per bike: 1
- 26 CONTROL MODULE, FUEL INJECTION/IGNITION 38770-K0G-T61Qty per bike: 1
- 27 RUBBER, ECM DAMPER 38771-K76-T60Qty per bike: 1
- 28 SEAL, ECM BOX 38775-K76-T61Qty per bike: 1
- 29 BOLT, SPECIAL, 6 mm 90107-KVB-900Qty per bike: 1
- 30 SCREW, FLANGE LOCK, 6x12 90164-KZL-A00Qty per bike: 2
- 31 STRAP, WIRE 90651-K31-A61Qty per bike: 1
- 32 BAND, WIRE, 165 mm (BLACK) 90651-KV6-003Qty per bike: 1
- 33 BAND, WIRE (BLACK) 90652-KT1-771Qty per bike: 1
- 34 STRAP 90679-KPE-C21Qty per bike: 1
- 35 CAP (6P) (RED) 91771-MKK-H11Qty per bike: 1
- 36 BOLT, HEX, 6x20 92101-06020-4JQty per bike: 2
- 37 BOLT, FLANGE, 6x10 95701-06010-00Qty per bike: 1
- 38 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 1
- 39 BOLT, FLANGE, 6x16 95701-06016-00Qty per bike: 2
