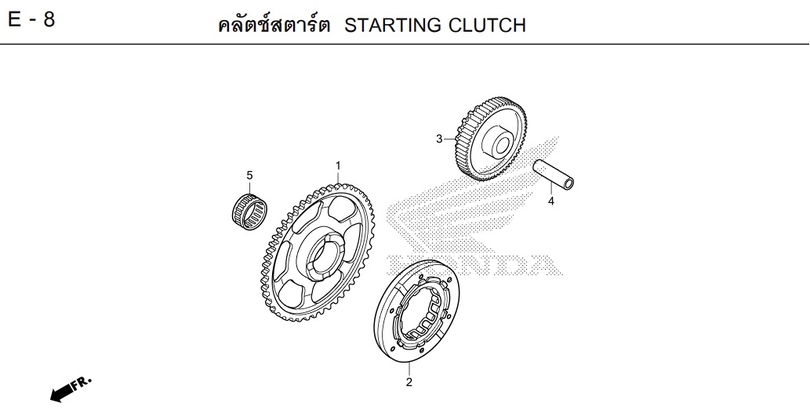

CB300R 2023 · E-8 STARTING CLUTCH
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-8
- 1 GEAR, STARTING CLUTCH DRIVE (68T) 28110-K33-D00Qty per bike: 1
- 1 GEAR, STARTING CLUTCH DRIVE (68T) 28111-K0A-DB0Qty per bike: 1
- 2 CLUTCH, STARTING OUTER 28125-K87-H01Qty per bike: 1
- 2 CLUTCH, STARTING OUTER 28125-KYJ-901Qty per bike: 1
- 3 GEAR, STARTING CLUTCH REDUCTION 28130-KYJ-900Qty per bike: 1
- 4 SHAFT, REDUCTION GEAR C 28132-MK5-000Qty per bike: 1
- 5 BEARING, NEEDLE ROLLER, 29x36x24 91007-K33-D03Qty per bike: 1
