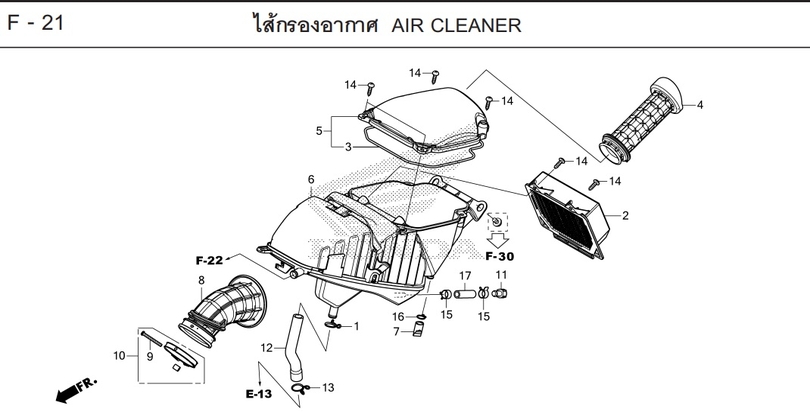

CB300R 2023 · F-21 AIR CLEANER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 CLIP, BREATHER TUBE LOCK 15772-GW3-980Qty per bike: 1
- 1 CLIP, BREATHER TUBE LOCK B 15772-MN1-670Qty per bike: 1
- 2 ELEMENT, AIR CLEANER 17210-K0A-DB0Qty per bike: 1
- 2 ELEMENT, AIR CLEANER 17210-K94-T00Qty per bike: 1
- 3 SEAL, AIR CLEANER CASE 17214-K94-T00Qty per bike: 1
- 4 TUBE, AIR INTAKE 17215-K0A-DB0Qty per bike: 1
- 4 TUBE, AIR INTAKE 17215-K0A-E10Qty per bike: 1
- 5 AIR CLEANER CASE COVER SET 17225-K0A-DB0Qty per bike: 1
- 5 AIR CLEANER CASE COVER SET 17225-K94-T00Qty per bike: 1
- 6 AIR CLEANER CASE 17230-K0A-DB0Qty per bike: 1
- 6 AIR CLEANER CASE 17230-K0A-E10Qty per bike: 1
- 7 PLUG, AIR VENT HOLE 17236-KVB-900Qty per bike: 1
- 8 NECK, AIR TUBE 17253-K0A-DB0Qty per bike: 1
- 8 NECK, AIR TUBE 17253-K0A-E10Qty per bike: 1
- 9 SCREW, 4x35 93500-04035-0GQty per bike: 1
- 10 BAND, AIR TUBE (56) 17235-MKH-D00Qty per bike: 1
- 10 BAND, AIR TUBE (56) 17236-K0A-DB0Qty per bike: 1
- 11 CAP, DRAIN TUBE 17370-419-700Qty per bike: 1
- 12 TUBE, BREATHER 17371-K0A-E10Qty per bike: 1
- 13 CLIP, BREATHER TUBE LOCK, 17 mm 17317-K0A-DB0Qty per bike: 1
- 13 CLIP, BREATHER TUBE LOCK, 16 mm 90646-657-000Qty per bike: 1
- 14 SCREW, TAPPING, 5x20 93903-25480Qty per bike: 6
- 15 BAND, HOSE (D12.0) 90602-KPL-900Qty per bike: 2
- 15 BAND, HOSE (D12) 95002-41200-08Qty per bike: 2
- 16 CLIP, TUBE (C12) 90652-KYJ-DA0Qty per bike: 1
- 16 CLIP, TUBE (C12) 95002-80000Qty per bike: 1
- 17 HOSE, RUBBER, 8x12x40 95003-23004-31Qty per bike: 1
This catalogue is shared by: CB300R 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
