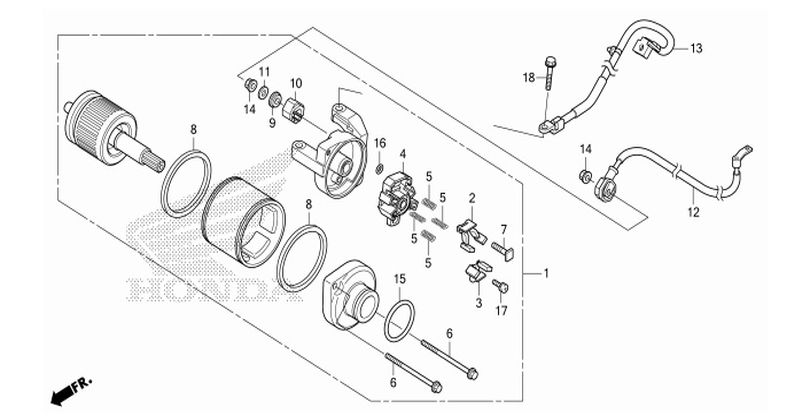

CBR300R 2014 · E-11 STARTING MOTOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 STARTER MOTOR SET 31200-KYJ-902Qty per bike: 1
- 2 BRUSH SET A 31201-MEW-921Qty per bike: 1
- 3 BRUSH SET B 31202-MEW-921Qty per bike: 1
- 4 HOLDER, BRUSH 31203-MEW-921Qty per bike: 1
- 5 SPRING, BRUSH 31204-MEW-921Qty per bike: 4
- 6 BOLT 31205-HP5-601Qty per bike: 2
- 7 BOLT, TERMINAL MOUNTING 31206-MEW-921Qty per bike: 1
- 8 SEAL, RING 31207-HP5-601Qty per bike: 2
- 9 INSULATOR 31208-MEW-921Qty per bike: 1
- 10 LOCK, TERMINAL 31209-MEW-921Qty per bike: 1
- 11 WASHER 31210-MEW-921Qty per bike: 1
- 12 WIRE, STARTER MOTOR 32410-KYJ-900Qty per bike: 1
- 13 WIRE, GROUND 32601-KYJ-900Qty per bike: 1
- 14 NUT, WASHER, 6 mm 90071-MB0-000Qty per bike: 2
- 15 O-RING, 24.4x3.1 91309-425-003Qty per bike: 1
- 16 O-RING, 4x2 91320-MB0-000Qty per bike: 1
- 17 SCREW, WASHER, 5x12 93892-05012-08Qty per bike: 1
- 18 BOLT, FLANGE, 6x25 95701-06025-00Qty per bike: 2
