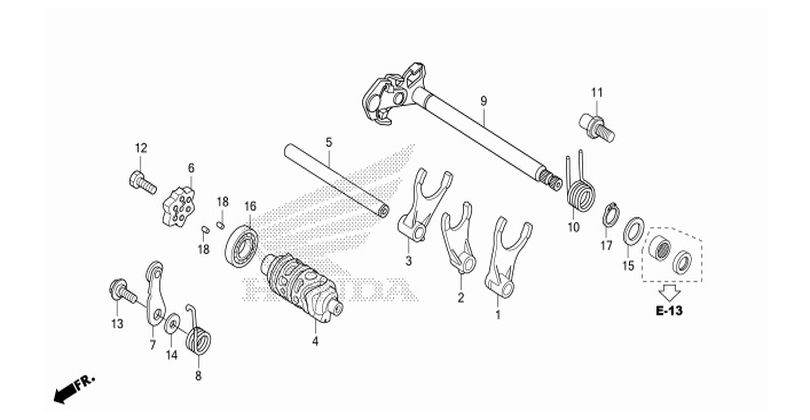

CBR300R 2014 · E-17 GEARSHIFT DRUM
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 PAWL, LEFT GEARSHIFT 24211-KZZ-900Qty per bike: 1
- 2 PAWL, CENTER GEARSHIFT 24212-KZZ-900Qty per bike: 1
- 3 PAWL, RIGHT GEARSHIFT 24213-KZZ-900Qty per bike: 1
- 4 GEARBOX 24301-KYJ-900Qty per bike: 1
- 5 SHAFT, GEARSHIFT PAWL 24321-KYJ-900Qty per bike: 1
- 6 PLATE, GEAR POSITION STOPPER 24410-KYJ-900Qty per bike: 1
- 7 ARM, GEARSHIFT 24430-KGH-901Qty per bike: 1
- 8 SPRING, GEARSHIFT ARM 24435-KYJ-900Qty per bike: 1
- 9 SPINDLE, GEARSHIFT 24610-KYJ-900Qty per bike: 1
- 10 SPRING, RETURN 24651-KRM-840Qty per bike: 1
- 11 PIN, RETURN SPRING 24652-KRM-840Qty per bike: 1
- 12 BOLT, HEX, 6x20 90003-KVS-900Qty per bike: 1
- 13 BOLT, GEARSHIFT ARM PIVOT 90022-MG8-000Qty per bike: 1
- 14 WASHER, 6.1 mm 90435-HB3-000Qty per bike: 1
- 15 WASHER, 14 mm 90457-KRM-840Qty per bike: 1
- 16 BEARING, RADIAL BALL, 6905 91015-MCA-003Qty per bike: 1
- 17 CLIP, OUTER LOCK, 14 mm 94510-14000Qty per bike: 1
- 18 BEARING, NEEDLE ROLLER, 3x8.5 96220-30085Qty per bike: 2
