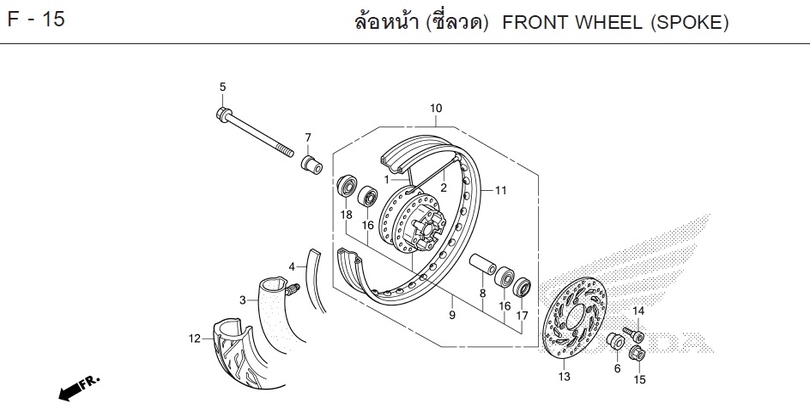

CLICK125i 2021 · F-15 FRONT WHEEL (SPOKE)

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page F-15

1 SPOKE SET A, 10x129.5 (OUTER) 06440-KVY-910Qty per bike: 18
2 SPOKE SET A, 10x130 (INNER) 06441-KVY-910Qty per bike: 18
3 TUBE, TIRE (80/90-14) 42712-KVB-901Qty per bike: 1
3 TUBE, TIRE (80/90-14) 42712-KVB-902Qty per bike: 1
3 TUBE, TIRE 44712-KVG-902Qty per bike: 1
3 TUBE, TIRE 44712-KVG-903Qty per bike: 1
4 BAND, RIM (FRONT) 42713-116-671Qty per bike: 1
4 BAND, FRONT RIM 44713-KVG-902Qty per bike: 1
5 AXLE, FRONT WHEEL 44301-KVG-950Qty per bike: 1
6 COLLAR, FRONT WHEEL SIDE 44311-KVB-910Qty per bike: 1
7 COLLAR, FRONT WHEEL SIDE 44312-KZR-600Qty per bike: 1
8 COLLAR, FRONT AXLE 44620-KVB-910Qty per bike: 1
9 FRONT WHEEL HUB SET (ALL COLORS) 44635-KZR-C00ZAQty per bike: 1
10 FRONT WHEEL SET (BLUE-BLACK) (ORANGE-BLACK) 44650-KZR-C01ZAQty per bike: 1
11 RIM, FRONT WHEEL 44701-KVG-902Qty per bike: 1
12 TIRE, FRONT 80/90-14 M/C 40P 44711-KVG-901Qty per bike: 1
12 TIRE, FRONT 80/90-14 M/C 40P 44711-KVG-902Qty per bike: 1
12 TIRE, FRONT 80/90-14 M/C 40P 44711-KVG-903Qty per bike: 1
12 TIRE, FRONT 80/90-14 M/C 40P 44711-KVG-904Qty per bike: 1
12 TIRE, FRONT 80/90-14 M/C 40P 44711-KVG-905Qty per bike: 1
13 DISK, FRONT BRAKE 45351-K16-941Qty per bike: 1
13 DISK, FRONT BRAKE 45351-K81-N31Qty per bike: 1
13 DISK, FRONT BRAKE 45351-K93-N01Qty per bike: 1
13 DISK, FRONT BRAKE 45351-KVB-931Qty per bike: 1
13 DISK, FRONT BRAKE 45351-KVB-S02Qty per bike: 1
14 BOLT, BRAKE DISK MOUNTING, 8x24 90105-KGH-900Qty per bike: 4
15 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 1
16 BEARING, RADIAL BALL (6201U L) 91052-K03-N41Qty per bike: 2
16 BEARING, RADIAL BALL (6201U L) (NSK) 91052-K24-901Qty per bike: 2
16 BEARING, RADIAL BALL (6201U L) 91052-K24-902Qty per bike: 2
16 BEARING, RADIAL BALL (6201U L) 91052-K24-903Qty per bike: 2
16 BEARING, RADIAL BALL (6201U L) (FAG) 91052-K24-904Qty per bike: 2
17 SEAL, DUST, 21x37x7 91251-KPH-901Qty per bike: 1
18 SEAL, DUST, 21x32x5 91251-KZR-601Qty per bike: 1

This catalogue is shared by: CLICK125 2023, CLICK125i 2021. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
