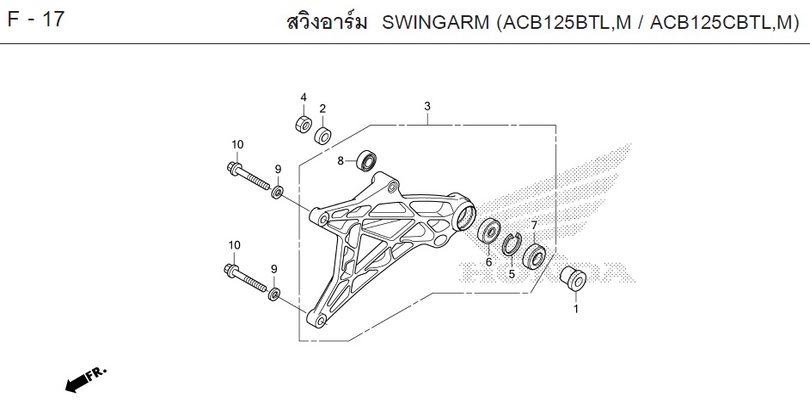

CLICK125i 2021 · F-17 SWINGARM (ACB125BTL,M / ACB125CBTL,M)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-17
- 1 COLLAR, REAR WHEEL SIDE 42311-KWN-900Qty per bike: 1
- 2 COLLAR, REAR WHEEL SIDE B 42312-KVG-900Qty per bike: 1
- 3 SWINGARM SET 52100-K59-A70Qty per bike: 1
- 4 NUT, U, 16 mm 90305-KVB-901Qty per bike: 1
- 5 CLIP, INNER LOCK, 40 mm 90651-KZR-601Qty per bike: 1
- 5 CLIP, INNER LOCK, 40 mm 94520-40000Qty per bike: 1
- 6 BEARING, RADIAL BALL, 6203UU (NSK) 91051-K35-V01Qty per bike: 1
- 6 BEARING, RADIAL BALL, 6203UU (NTN) 91051-K35-V02Qty per bike: 1
- 6 BEARING, RADIAL BALL, 6203UU (FUJIKOSHI) 91051-K35-V03Qty per bike: 1
- 6 BEARING, RADIAL BALL, 6203UU (FAG) 91051-K35-V04Qty per bike: 1
- 7 SEAL, DUST, 25x40x5 91252-KZR-601Qty per bike: 1
- 8 SEAL, DUST, 25x35x6 91253-KZR-601Qty per bike: 1
- 9 WASHER, 10 mm 94101-10000Qty per bike: 2
- 10 BOLT, FLANGE, 10x40 95701-10040-00Qty per bike: 2
