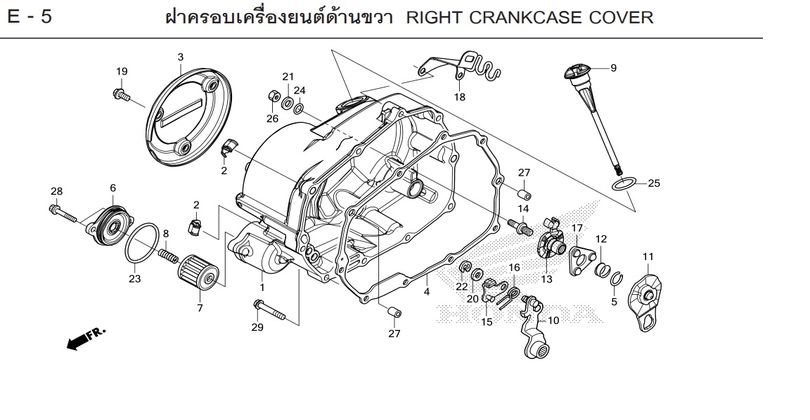

DAX125 2023 · E-5 RIGHT CRANKCASE COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-5
- 1 COVER, RIGHT CRANKCASE 11331-K2W-T00Qty per bike: 1
- 2 HOLDER, OIL TEMPERATURE SENSOR WIRE 11346-KTR-940Qty per bike: 2
- 3 GUARD, RIGHT CRANKCASE COVER HEAT 11370-K2W-T00Qty per bike: 1
- 4 GASKET, RIGHT CRANKCASE COVER 11394-K1M-T02Qty per bike: 1
- 5 CLIP, PISTON PIN, 13 mm 13115-GN5-910Qty per bike: 1
- 6 COVER, OIL FILTER 15411-K26-G00Qty per bike: 1
- 7 OIL FILTER ELEMENT SET 15412-MGS-D21Qty per bike: 1
- 8 SPRING, OIL STRAINER 15414-MEB-670Qty per bike: 1
- 9 DIPSTICK, OIL LEVEL 15651-K2W-T00Qty per bike: 1
- 10 ARM, CENTRIFUGAL CLUTCH BRAKE 22810-K0G-T20Qty per bike: 1
- 11 PLATE, CLUTCH LIFTER CAM 22823-K0G-T20Qty per bike: 1
- 12 SPRING, CLUTCH LIFTER CAM PLATE 22825-KWW-740Qty per bike: 1
- 13 CLUTCH LIFTER PLATE SET 22830-K0G-T20Qty per bike: 1
- 14 BOLT, CLUTCH ADJUSTING 22846-K1M-T00Qty per bike: 1
- 15 CENTRIFUGAL CLUTCH BRAKE SET 22850-KPH-900Qty per bike: 1
- 16 SPRING, CENTRIFUGAL CLUTCH SHOE 22853-KPH-900Qty per bike: 1
- 17 BEARING SET, CLUTCH LIFTER 22860-K1M-T00Qty per bike: 1
- 18 STAY, WIRE 32158-K2W-T00Qty per bike: 1
- 19 BOLT, FLANGE, 6x12 90017-GHB-610Qty per bike: 3
- 20 WASHER, THRUST, 8 mm 90443-844-000Qty per bike: 1
- 21 WASHER, 8 mm 90485-K1M-T00Qty per bike: 1
- 22 CLIP, LOCK, 7 mm 90605-166-720Qty per bike: 1
- 23 O-RING, 39.8x2.2 91302-PA9-003Qty per bike: 1
- 24 O-RING, 8 mm 91303-001-010Qty per bike: 1
- 25 O-RING, 18x3 91307-KRM-840Qty per bike: 1
- 26 NUT, HEX, 8 mm 94030-08000Qty per bike: 1
- 27 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
- 28 BOLT, FLANGE, 6x18 96001-06018-00Qty per bike: 2
- 29 BOLT, FLANGE, 6x35 96001-06035-00Qty per bike: 10
This catalogue is shared by: DAX125 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
