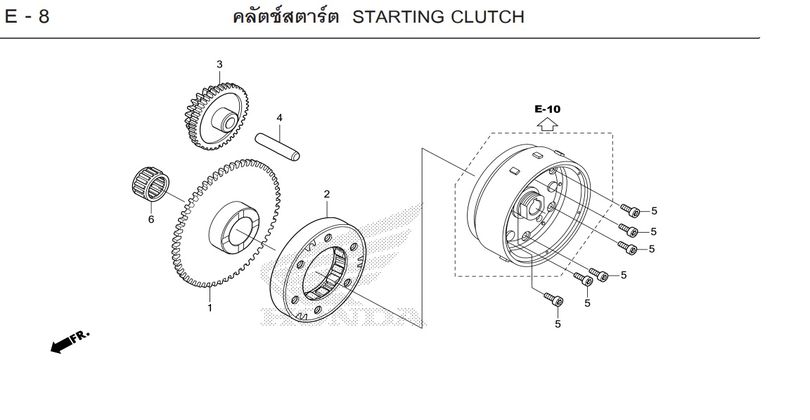

DAX125 2023 · E-8 STARTING CLUTCH
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-8
- 1 GEAR, STARTING CLUTCH DRIVE (56T) 28111-K1M-T00Qty per bike: 1
- 2 CLUTCH, ONE-WAY STARTING 28120-KPH-701Qty per bike: 1
- 3 GEAR, STARTING CLUTCH REDUCTION 13T/58T 28131-K26-G00Qty per bike: 1
- 4 SHAFT, REDUCTION GEAR 28132-K1M-T00Qty per bike: 1
- 5 BOLT, 6 mm 90085-KRM-850Qty per bike: 6
- 6 BEARING, NEEDLE ROLLER, 21x27x18 91011-KWW-741Qty per bike: 1
