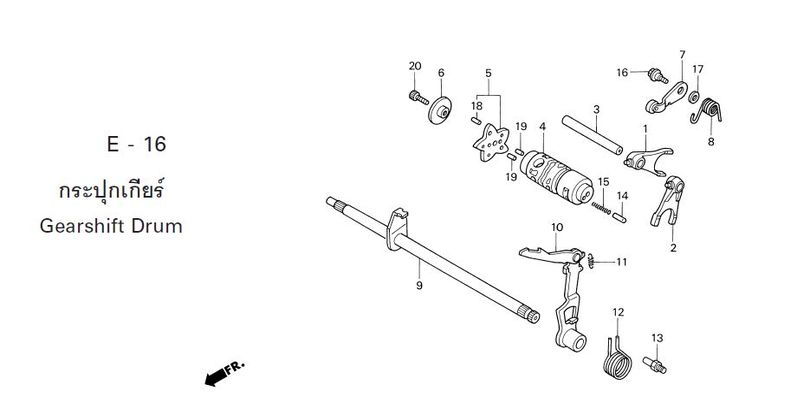

DREAM125 2007 · E-16 GEARSHIFT DRUM
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-16
- 1 PAWL, RIGHT GEARSHIFT 24211-KPH-900Qty per bike: 1
- 2 PAWL, LEFT GEARSHIFT 24212-KPH-900Qty per bike: 1
- 3 SHAFT, GEARSHIFT PAWL 24241-KPH-900Qty per bike: 1
- 4 GEARBOX 24301-KPH-900Qty per bike: 1
- 5 PLATE, GEAR POSITION LOCK 24410-KPH-900Qty per bike: 1
- 6 HOLDER, GEAR POSITION LOCK PLATE 24421-KPH-900Qty per bike: 1
- 7 ARM, GEARBOX CONTROL 24430-KPH-900Qty per bike: 1
- 7 ARM, GEARSHIFT 24430-KPH-901Qty per bike: 1
- 8 SPRING, GEARSHIFT ARM 24435-KPH-900Qty per bike: 1
- 9 SPINDLE, GEARSHIFT 24610-KPH-900Qty per bike: 1
- 10 ARM, GEARSHIFT 24630-KPH-900Qty per bike: 1
- 11 SPRING, GEARSHIFT ARM 24641-KPH-900Qty per bike: 1
- 12 SPRING, RETURN 24651-KPH-900Qty per bike: 1
- 13 PIN, RETURN SPRING 24652-KPH-900Qty per bike: 1
- 14 PIN, GEARSHIFT SWITCH 35751-KPH-900Qty per bike: 1
- 15 SPRING, GEARSHIFT SWITCH 35752-KPH-900Qty per bike: 1
- 16 BOLT, GEARSHIFT ARM PIVOT 90022-MG8-000Qty per bike: 1
- 17 WASHER, 6.1 mm 90435-HB3-000Qty per bike: 1
- 18 PIN, 4x10.8 91111-KW7-900Qty per bike: 5
- 19 BEARING, NEEDLE ROLLER, 3x8.5 96220-30085Qty per bike: 2
- 20 BOLT, PIN 6X16 96700-06016-00Qty per bike: 1
