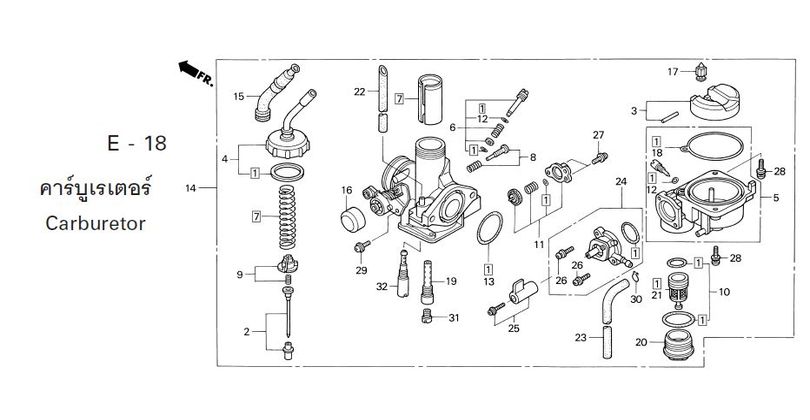

DREAM125 2007 · E-18 CARBURETOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-18
- 1 GASKET SET, CARBURETOR 16010-KPW-901Qty per bike: 1
- 2 NEEDLE, THROTTLE 16012-KPW-901Qty per bike: 1
- 3 FLOAT SET 16013-KPG-901Qty per bike: 1
- 4 THROTTLE CAP SET 16014-KPH-901Qty per bike: 1
- 6 SCREW, AIR ADJUSTING 16016-141-781Qty per bike: 1
- 6 SCREW, AIR ADJUSTING 16016-GK4-941Qty per bike: 1
- 7 THROTTLE VALVE SET 16022-KPW-901Qty per bike: 1
- 8 SCREW, CARBURETOR ADJUSTING 16028-KPH-901Qty per bike: 1
- 9 PLATE, THROTTLE NEEDLE MOUNTING 16037-KPH-901Qty per bike: 1
- 10 O-RING, FUEL FILTER CUP 16040-GB0-911Qty per bike: 1
- 11 AIR CUT-OFF VALVE SET 16048-KPH-901Qty per bike: 1
- 12 O-RING 1.3X4.3 16075-GHB-640Qty per bike: 2
- 13 O-RING 16075-KPH-901Qty per bike: 1
- 15 CAP, RUBBER THROTTLE 16118-GB4-003Qty per bike: 1
- 16 COVER, DUST 16148-141-881Qty per bike: 1
- 17 NEEDLE, FLOAT 16155-883-005Qty per bike: 1
- 18 GASKET, FLOAT CHAMBER 16163-GBG-960Qty per bike: 1
- 19 HOLDER, NEEDLE JET 16165-KPW-901Qty per bike: 1
- 20 CUP, FUEL FILTER 16175-GB0-911Qty per bike: 1
- 21 CUP, FILTER 16176-GB0-911Qty per bike: 1
- 22 TUBE, FUEL VAPOR DISCHARGE 16199-KPH-901Qty per bike: 1
- 23 HOSE, RUBBER OIL DRAIN 16199-435-771Qty per bike: 1
- 24 FUEL COCK SET 16951-KPW-901Qty per bike: 1
- 25 LEVER SET, OPEN/CLOSE 16963-KPW-901Qty per bike: 1
- 26 SCREW, WASHER 3X12 93892-03012-18Qty per bike: 2
- 27 SCREW, WASHER 4X10 93892-04010-10Qty per bike: 2
- 28 SCREW, WASHER 4X14 93892-04014-18Qty per bike: 2
- 29 SCREW, WASHER 5X10 93892-05010-18Qty per bike: 1
- 30 CLIP, TUBE (B6.5) 95002-02659Qty per bike: 1
- 31 JET, MAIN #75 99101-KPH-0750Qty per bike: 1
- 32 JET, SLOW #35 99103-KPH-0350Qty per bike: 1
