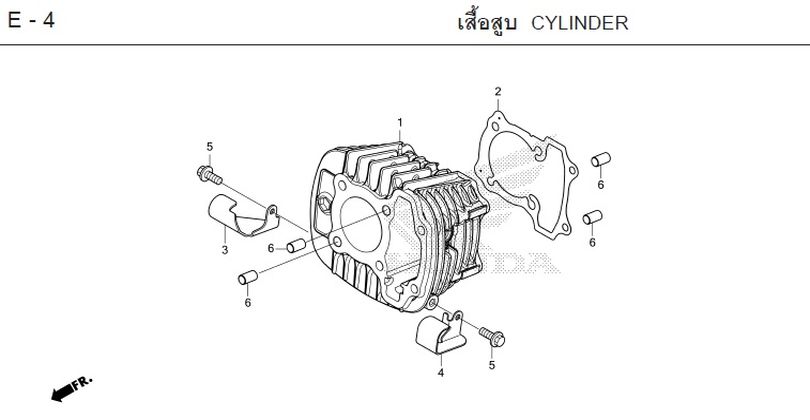

MSX GROM 2021 · E-4 CYLINDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-4
- 1 CYLINDER 12100-K26-G00Qty per bike: 1
- 2 GASKET, CYLINDER 12191-K1M-T01Qty per bike: 1
- 2 GASKET, CYLINDER 12191-K1M-T02Qty per bike: 1
- 4 PLATE, OIL TEMPERATURE SENSOR PROTECTOR 37751-K26-G00Qty per bike: 1
- 5 BOLT, FLANGE, 6x14 90005-MGZ-J00Qty per bike: 2
- 6 PIN, DOWEL, SPECIAL, 8x14 90701-KFM-900Qty per bike: 4
