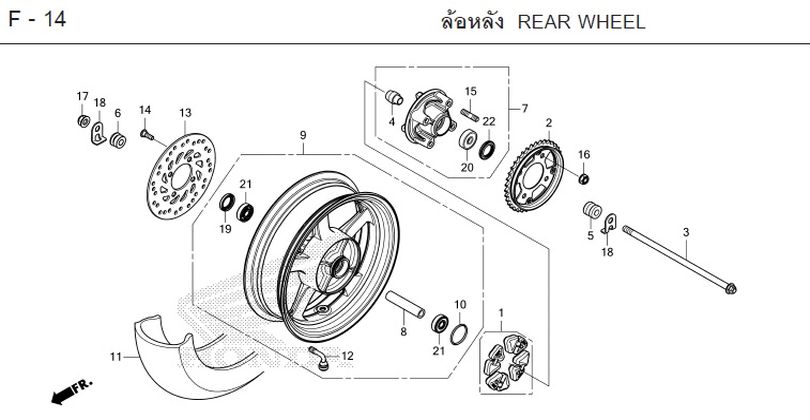

MSX GROM 2021 · F-14 REAR WHEEL
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 DAMPER SET, RUBBER 06410-KWB-600Qty per bike: 1
- 2 SPROCKET, DRIVEN (38T) 41200-K26-G01Qty per bike: 1
- 3 AXLE, REAR WHEEL 42301-K26-G00Qty per bike: 1
- 4 COLLAR, REAR SPROCKET BEARING AXLE 42303-KWB-600Qty per bike: 1
- 5 COLLAR, LEFT REAR WHEEL SIDE 42311-K26-900Qty per bike: 1
- 6 COLLAR, RIGHT REAR WHEEL SIDE 42312-K26-G00Qty per bike: 1
- 7 FLANGE SET, DRIVEN SPROCKET 42615-K26-G00Qty per bike: 1
- 8 COLLAR, REAR WHEEL BEARING DISTANCE 42620-K26-900Qty per bike: 1
- 9 REAR WHEEL SET (GRAY/BLACK) 42650-K26-G00ZAQty per bike: 1
- 9 REAR WHEEL SET (ALL COLORS) 42650-K26-G00ZBQty per bike: 1
- 10 O-RING, 40.5x3 42653-001-004Qty per bike: 1
- 11 TIRE, REAR (130/70-12 56L) 42711-K26-B03Qty per bike: 1
- 11 TIRE, REAR (130/70-12 56L) 42711-K26-B04Qty per bike: 1
- 12 VALVE, TIRE 42753-KJ9-004Qty per bike: 1
- 12 VALVE, TIRE 42753-KJ9-005Qty per bike: 1
- 12 VALVE, TIRE 42753-KWP-E01Qty per bike: 1
- 13 DISK, REAR BRAKE 43251-K26-G01Qty per bike: 1
- 14 BOLT, BRAKE DISK MOUNTING, 8x24 90105-KGH-900Qty per bike: 4
- 15 BOLT, STUD, 10x22 90128-K26-G00Qty per bike: 4
- 16 NUT, U, 10 mm (FUJI SEIMITSU) 90304-KGH-901Qty per bike: 4
- 17 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 1
- 18 WASHER, REAR AXLE 90559-K26-G00Qty per bike: 2
- 19 OIL SEAL, 26x37x6 90753-051-003Qty per bike: 1
- 20 BEARING, RADIAL BALL, 6203UU (NTN) 91051-K35-V02Qty per bike: 1
- 20 BEARING, RADIAL BALL, 6203UU (FUJIKOSHI) 91051-K35-V03Qty per bike: 1
- 21 BEARING, RADIAL BALL (6301U L) 91053-K03-H01Qty per bike: 2
- 21 BEARING, RADIAL BALL (6301U L) 91053-K03-H02Qty per bike: 2
- 22 SEAL, DUST, 27x40x4.5 91251-KGH-902Qty per bike: 1
