REBEL 300 2017 · F-3 HANDLE LEVER/SWITCH/

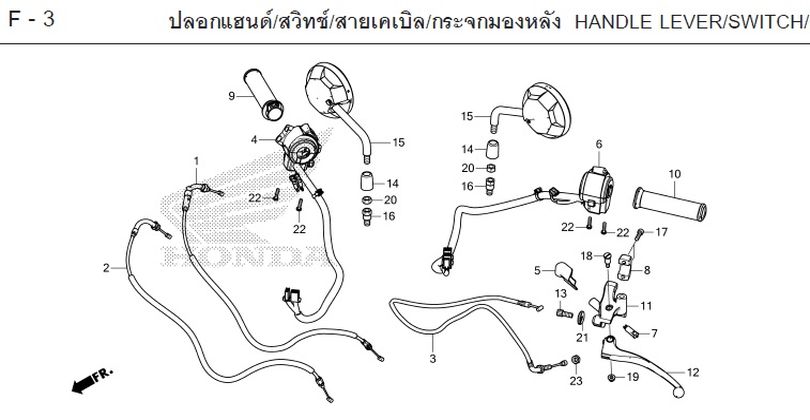

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-3
- 1 CABLE A, THROTTLE 17910-K87-A01Qty per bike: 1
- 2 CABLE B, THROTTLE 17920-K87-A01Qty per bike: 1
- 3 CABLE, CLUTCH 22870-K87-A01Qty per bike: 1
- 4 SWITCH SET, RIGHT HANDLE 35130-K87-A01Qty per bike: 1
- 5 COVER, CLUTCH SWITCH 35152-MGZ-J00Qty per bike: 1
- 6 SWITCH SET, LEFT HANDLE 35200-K87-A01Qty per bike: 1
- 7 SWITCH, CLUTCH 35330-KYJ-901Qty per bike: 1
- 8 HOLDER, BRAKE MASTER CYLINDER 45517-MAV-751Qty per bike: 1
- 9 GRIP, THROTTLE 53140-K87-A00Qty per bike: 1
- 10 GRIP, LEFT HANDLE 53165-K87-A00Qty per bike: 1
- 11 HOLDER, CLUTCH LEVER 53172-K87-A00Qty per bike: 1
- 12 LEVER, CLUTCH 53178-K87-A00Qty per bike: 1
- 13 BOLT, CLUTCH CABLE ADJUSTING 53192-349-690Qty per bike: 1
- 14 COVER, RUBBER 88119-K87-A00Qty per bike: 2
- 15 MIRROR SET 88210-K87-A00Qty per bike: 2
- 16 BOLT, MIRROR JOINT, 10 mm 90101-K20-901Qty per bike: 2
- 17 BOLT, 6x22 90111-GHB-660Qty per bike: 2
- 18 BOLT, CLUTCH LEVER MOUNTING 90113-438-000Qty per bike: 1
- 19 NUT, CAP, 6 mm 90201-415-000Qty per bike: 1
- 20 NUT, HEX, 10 mm (LEFT THREAD) 90301-K20-901Qty per bike: 2
- 21 NUT, LOCK 90321-KT7-760Qty per bike: 1
- 22 SCREW, WASHER, 5x20 90507-MGZ-J00Qty per bike: 4
- 23 NUT, HEX, 8 mm 94002-08070-0SQty per bike: 1
