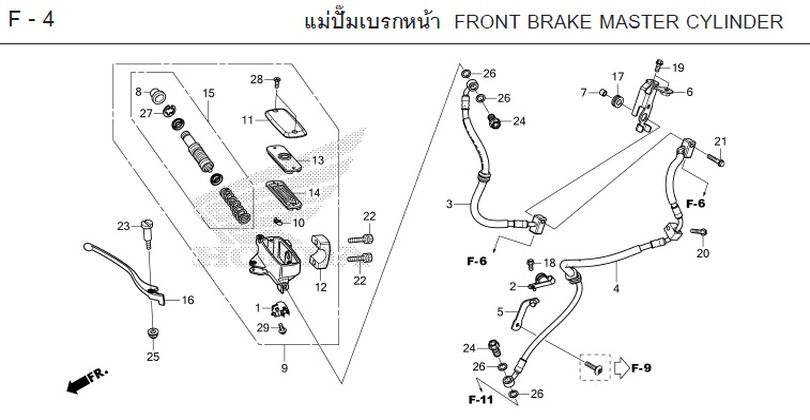

REBEL 300 2017 · F-4 FRONT BRAKE MASTER CYLINDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-4
- 1 SWITCH SET, FRONT STOP LIGHT (ALPS) 35340-MGS-D31Qty per bike: 1
- 2 BAND, BRAKE HOSE 43155-K87-L50Qty per bike: 1
- 3 HOSE A, FRONT BRAKE 45125-K87-L51Qty per bike: 1
- 4 HOSE, FRONT BRAKE D 45128-K87-L51Qty per bike: 1
- 5 STAY, FRONT BRAKE HOSE 45155-K87-A00Qty per bike: 1
- 6 STAY, FRONT BRAKE HOSE B 45160-K87-L50Qty per bike: 1
- 7 COLLAR, BRAKE HOSE STAY 45161-K87-L50Qty per bike: 1
- 8 BOOT, DUST 45504-410-003Qty per bike: 1
- 9 MASTER CYLINDER SET, FRONT BRAKE 45510-K87-A01Qty per bike: 1
- 10 PLATE, BAFFLE 45512-MA6-006Qty per bike: 1
- 11 CAP, BRAKE RESERVOIR 45513-MM5-016Qty per bike: 1
- 12 HOLDER, BRAKE MASTER CYLINDER 45517-MAV-751Qty per bike: 1
- 13 PLATE, DIAPHRAGM 45518-MM5-006Qty per bike: 1
- 14 DIAPHRAGM 45520-MM5-006Qty per bike: 1
- 15 PISTON SET, FRONT BRAKE MASTER CYLINDER 45530-K03-M61Qty per bike: 1
- 16 LEVER, FRONT BRAKE 53175-MR5-003Qty per bike: 1
- 17 RUBBER, REAR FENDER 64312-KWW-640Qty per bike: 1
- 18 BOLT, FLANGE, 6x10 90013-GHB-600Qty per bike: 1
- 19 BOLT, FLANGE, 6x12 90013-GHB-610Qty per bike: 2
- 20 BOLT, FLANGE, 6x28 90013-GHB-680Qty per bike: 1
- 21 BOLT, FLANGE, 6x32 90013-GHB-690Qty per bike: 1
- 22 BOLT, 6x22 90111-GHB-660Qty per bike: 2
- 23 BOLT, REAR BRAKE LEVER PIVOT 90114-MA5-671Qty per bike: 1
- 24 BOLT, OIL (BRAKE), 10x22 90145-MS9-612Qty per bike: 2
- 25 NUT, CAP, 6 mm 90202-KCW-870Qty per bike: 1
- 26 WASHER, SEALING 90545-300-000Qty per bike: 4
- 27 CLIP, INNER LOCK, 18.8 mm 90651-K03-M61Qty per bike: 1
- 28 SCREW, 4x12 93600-04012-1GQty per bike: 2
- 29 SCREW, WASHER, 4x12 93893-04012-17Qty per bike: 1
