SUPER CUB 2025 · F-29-1 29-1 WIRE HARNESS(NBCI IOMSBT)

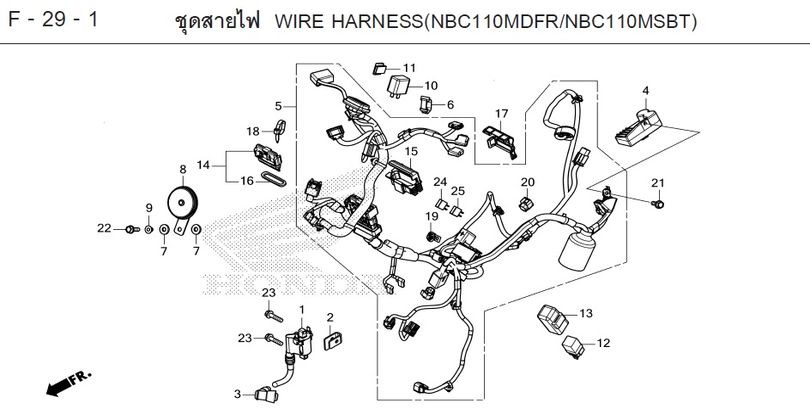

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-29-1
- 1 COIL, IGNITION 30510-K1M-T01Qty per bike: 1
- 2 STAY, IGNITION COIL 30511-K1M-K30Qty per bike: 1
- 3 CAP, SPARK PLUG 30700-K0G-901Qty per bike: 1
- 4 PLATE, CHARGING 31600-K1M-T41Qty per bike: 1
- 4 PLATE, CHARGING 31600-K47-M01Qty per bike: 1
- 5 WIRE HARNESS 32100-K1M-T30Qty per bike: 1
- 5 WIRE HARNESS 32100-K1M-T40Qty per bike: 1
- 6 BAND B1, WIRE 32161-404-000Qty per bike: 1
- 7 RUBBER, HORN STAY 33714-KL3-620Qty per bike: 2
- 8 HORN (HIGH) 38110-K1M-T01Qty per bike: 1
- 8 HORN 38110-K1M-T41Qty per bike: 1
- 9 COLLAR, HORN STAY 38117-KPH-880Qty per bike: 1
- 10 RELAY, TURN SIGNAL 38301-GK8-014Qty per bike: 1
- 11 RUBBER, TURN SIGNAL RELAY DAMPER 38306-GE7-000Qty per bike: 1
- 11 RUBBER, TURN SIGNAL RELAY DAMPER (MITSUBA) 38306-KK4-000Qty per bike: 1
- 12 RELAY, STARTER 38501-KVB-901Qty per bike: 1
- 13 RUBBER, STARTER RELAY DAMPER (HONDALOCK) 38506-KWW-711Qty per bike: 1
- 14 CONTROL MODULE, FUEL INJECTION/IGNITION 38770-K1M-T31Qty per bike: 1
- 14 ANTI-THEFT ALARM SET 38770-K1M-T41Qty per bike: 1
- 15 RUBBER, ECU BOX DAMPER 38771-K1M-T00Qty per bike: 1
- 16 SEAL, ECM BOX 38775-K76-T61Qty per bike: 1
- 17 COVER, ELECTRONIC CONTROL UNIT 81225-K3F-T50Qty per bike: 1
- 18 BAND, WIRE (BLACK) 90652-KT1-771Qty per bike: 1
- 19 CLIP, MOUNTING 90651-K1N-V61Qty per bike: 1
- 19 CLIP, 2-WAY (DARK BLUE) 91535-STK-003Qty per bike: 1
- 20 CAP (6P) (RED) 91771-MKK-H11Qty per bike: 1
- 21 BOLT, FLANGE, 6x16 95701-06016-08Qty per bike: 1
- 22 BOLT, FLANGE, 6x18 95701-06018-00Qty per bike: 1
- 23 BOLT, FLANGE, 6x25 95701-06025-08Qty per bike: 2
- 24 FUSE, MINI (7.5A) 98200-40750Qty per bike: 4
- 25 FUSE (15A) 98200-41500Qty per bike: 2
