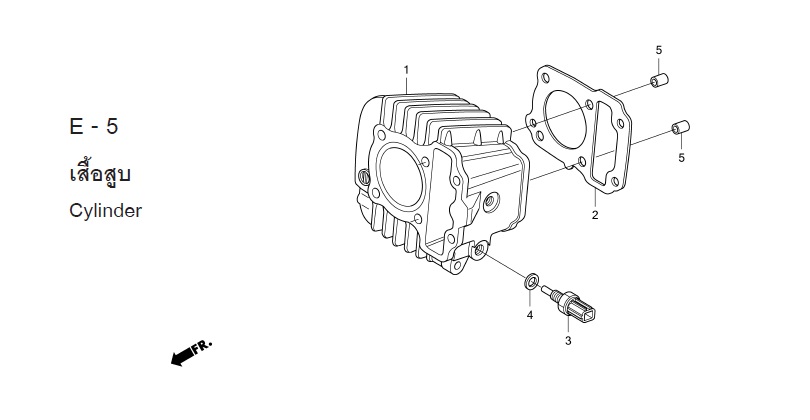

WAVE 110i 2013 · E-5 CYLINDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-5
- 1 CYLINDER 12100-KWB-600Qty per bike: 1
- 2 GASKET, CYLINDER 12191-KWB-920Qty per bike: 1
- 3 SENSOR, OIL TEMPERATURE 37750-KPH-701Qty per bike: 1
- 5 PIN, DOWEL, SPECIAL, 8x14 90701-KFM-900Qty per bike: 2
