WAVE 110i 2013 · E-8 CLUTCH (F.C.C.)

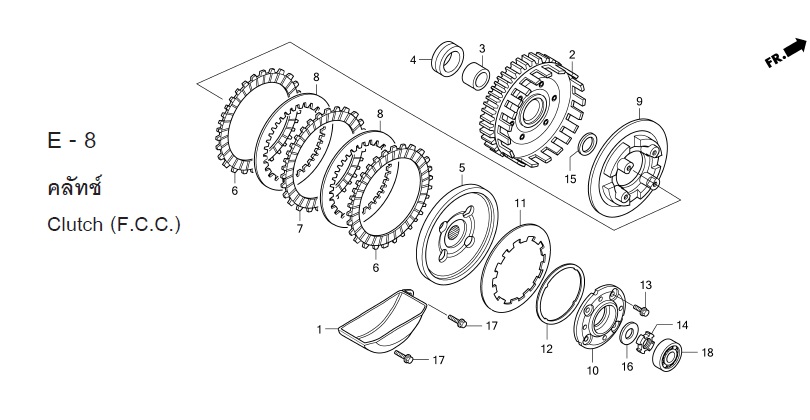

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-8
- 1 PLATE, OIL BAFFLE 15661-GN5-910Qty per bike: 1
- 2 CLUTCH OUTER 22110-KWW-741Qty per bike: 1
- 3 COLLAR, CLUTCH OUTER 22115-KPH-900Qty per bike: 1
- 4 COLLAR, CLUTCH OUTER 22116-KWW-740Qty per bike: 1
- 5 CLUTCH CENTER 22121-KWW-741Qty per bike: 1
- 6 PLATE, CLUTCH FRICTION 22201-KWW-741Qty per bike: 2
- 7 PLATE, CLUTCH FRICTION B 22204-KWW-741Qty per bike: 1
- 8 PLATE, CLUTCH 22321-KWW-741Qty per bike: 2
- 9 PLATE, CLUTCH PRESSURE 22351-KWW-741Qty per bike: 1
- 10 PLATE, CLUTCH LIFTER 22361-KWW-741Qty per bike: 1
- 11 SPRING, CLUTCH 22401-KWW-741Qty per bike: 1
- 12 PLATE, CLUTCH SPRING SEAT 22402-KWW-741Qty per bike: 1
- 13 BOLT, FLANGE, SPECIAL, 6x16 90050-KWB-601Qty per bike: 4
- 14 NUT, LOCK B, 14 mm 90231-198-010Qty per bike: 1
- 15 WASHER, THRUST, 17 mm 90403-KPH-900Qty per bike: 1
- 15 WASHER, THRUST, 17 mm 90403-KWW-741Qty per bike: 1
- 16 WASHER, 14.1 mm 90462-KWW-740Qty per bike: 1
- 17 BOLT, FLANGE, 6x20 95701-06020-00Qty per bike: 2
- 18 BEARING, RADIAL BALL, 6200 96100-62000-00Qty per bike: 1
