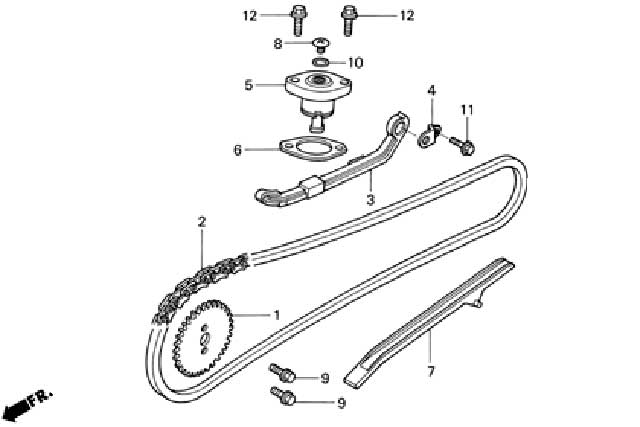

WAVE 125i 2005 · E-3 CAM CHAIN/TENSIONER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-3
- 1 SPROCKET, CAM CHAIN 14321-KPH-900Qty per bike: 1
- 2 CHAIN, CAM 14401-KPH-900Qty per bike: 1
- 3 CAM CHAIN TENSIONER RUBBER SET 14510-KPH-880Qty per bike: 1
- 4 PLATE, CHAIN TENSIONER RUBBER MOUNTING 14515-KGH-900Qty per bike: 1
- 5 TENSIONER 14520-KGH-601Qty per bike: 1
- 6 GASKET, TENSIONER 14560-KGH-900Qty per bike: 1
- 7 PLASTIC, CAM CHAIN SLIDER 14610-KPH-900Qty per bike: 1
- 8 SCREW, 6x6 90005-KY7-000Qty per bike: 1
- 9 BOLT, 5 mm 90083-GB6-911Qty per bike: 2
- 10 O-RING, 1.5x9.5 91306-MG3-000Qty per bike: 1
- 11 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 1
- 12 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 2
