WAVE 125i 2005 · E-4 CYLINDER

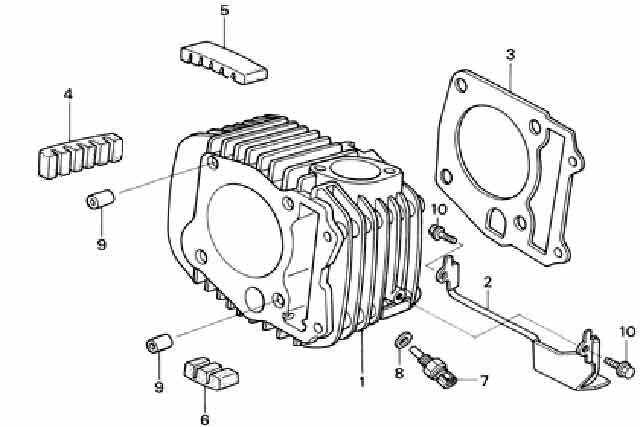

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-4
- 1 CYLINDER ASSY 12100-KPH-700Qty per bike: 1
- 1 CYLINDER ASSY 12100-KPH-900Qty per bike: 1
- 2 PLATE, ENGINE OIL BAFFLE 12180-KPH-700Qty per bike: 1
- 3 GASKET, CYLINDER 12191-KPH-900Qty per bike: 1
- 4 RUBBER, CYLINDER FIN A 12195-KPH-900Qty per bike: 1
- 5 RUBBER, CYLINDER FIN B 12196-KPH-900Qty per bike: 1
- 6 RUBBER, CYLINDER FIN C 12197-KPH-900Qty per bike: 1
- 7 SENSOR, OIL TEMPERATURE 37750-KPH-701Qty per bike: 1
- 8 WASHER, SEALING 10 mm 90441-425-000Qty per bike: 1
- 9 PIN, DOWEL, 10x12 94301-10120Qty per bike: 2
- 10 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
