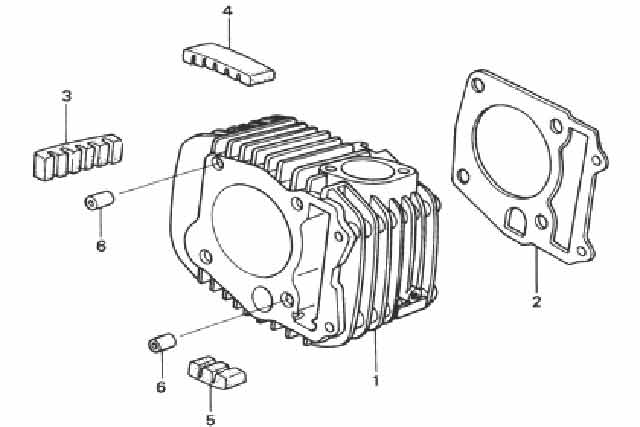

WAVE 125R 2005 · E-4 CYLINDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-4
- 1 CYLINDER ASSY 12100-KPH-970Qty per bike: 1
- 2 GASKET, CYLINDER 12191-KPH-900Qty per bike: 1
- 3 RUBBER, CYLINDER FIN A 12195-KPH-900Qty per bike: 1
- 4 RUBBER, CYLINDER FIN B 12196-KPH-900Qty per bike: 1
- 5 RUBBER, CYLINDER FIN C 12197-KPH-900Qty per bike: 1
- 6 PIN, DOWEL, 10x12 94301-10120Qty per bike: 2
