WAVE 125R 2005 · F-14

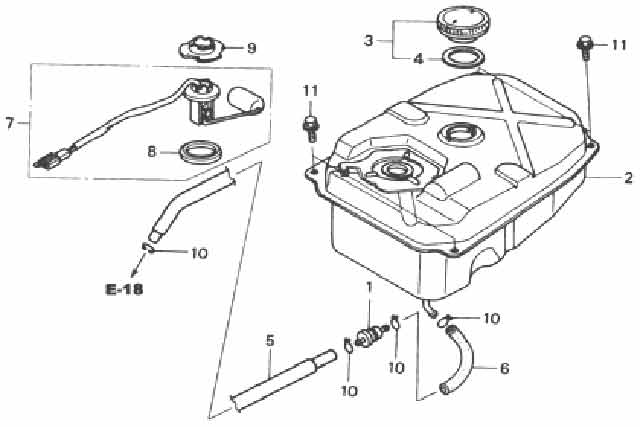

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 FILTER, FUEL 16910-KFM-902Qty per bike: 1
- 2 FUEL TANK 17510-KPH-950Qty per bike: 1
- 3 CAP, FUEL FILLER 17620-KEV-900Qty per bike: 1
- 4 GASKET, FUEL FILLER CAP 17631-KEV-900Qty per bike: 1
- 5 TUBE, FUEL 5.3X650 17631-KPH-650Qty per bike: 1
- 6 HOSE, FUEL 17633-KPH-900Qty per bike: 1
- 7 GAUGE, OIL LEVEL 37080-KPH-650Qty per bike: 1
- 8 GASKET, FUEL LEVEL SENSOR FLOAT SET 37801-GA7-700Qty per bike: 1
- 9 RING, FUEL LEVEL FLOAT SET LOCK 37802-GA7-700Qty per bike: 1
- 10 CLIP, TUBE (B10) 95002-02100Qty per bike: 6
- 11 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 4
