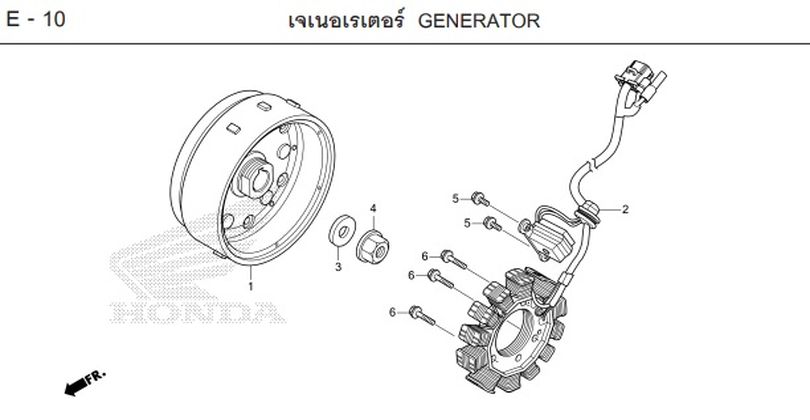

C125 2021 · E-10 GENERATOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10
- 1 WHEEL, CAST (MAG) 31110-K0G-T21Qty per bike: 1
- 2 STATOR COIL SET 31120-K1M-T01Qty per bike: 1
- 3 WASHER, 12x24x2.3 90439-KWZ-900Qty per bike: 1
- 4 NUT, FLANGE, 12 mm 94050-12000Qty per bike: 1
- 5 BOLT, FLANGE, 6x16 96001-06016-00Qty per bike: 2
- 6 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 3
This catalogue is shared by: C125 2021. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
