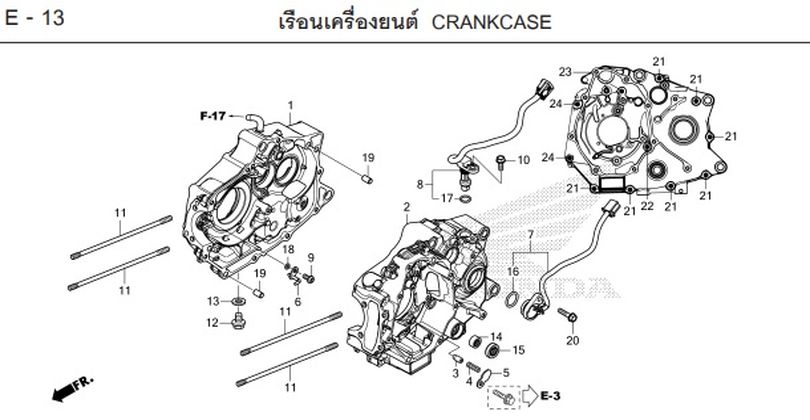

C125 2021 · E-13 CRANKCASE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 CRANKCASE, RIGHT 11100-K0G-T20Qty per bike: 1
- 1 CRANKCASE, RIGHT 11100-K0G-T30Qty per bike: 1
- 2 CRANKCASE, LEFT 11200-K0G-T20Qty per bike: 1
- 2 CRANKCASE, LEFT 11200-K0G-T30Qty per bike: 1
- 3 COLLAR, BEARING SPACER 11215-KYZ-900Qty per bike: 1
- 4 SPRING, BEARING COLLAR 11216-KYZ-900Qty per bike: 1
- 5 PLATE, BEARING PRESSER CLOSING 11218-K26-G00Qty per bike: 1
- 6 NOZZLE SET, OIL JET 15201-K1M-T02Qty per bike: 1
- 7 SWITCH SET, GEAR POSITION INDICATOR 35759-K0G-T21Qty per bike: 1
- 8 SENSOR SET, VEHICLE SPEED 37700-K0G-T21Qty per bike: 1
- 9 BOLT, SPECIAL, 6x12 90003-K0J-N00Qty per bike: 1
- 10 BOLT, FLANGE, 6x18 90004-GHB-640Qty per bike: 1
- 11 BOLT, CYLINDER STUD 90031-KYY-900Qty per bike: 4
- 12 BOLT, DRAIN, 12x15 90131-883-000Qty per bike: 1
- 13 WASHER, 12.5x20 90407-259-000Qty per bike: 1
- 14 BEARING, NEEDLE ROLLER, 12x16x10 91053-MFJ-D01Qty per bike: 1
- 15 OIL SEAL, 11.6x22x7 91208-KWB-601Qty per bike: 1
- 16 O-RING, 21x2.4 91301-HP2-671Qty per bike: 1
- 17 O-RING, 11.4x2.1 91304-K0L-D01Qty per bike: 1
- 18 O-RING, 3.8x1.4 91305-K0J-N00Qty per bike: 1
- 19 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
- 20 BOLT, FLANGE, 6x18 95701-06018-00Qty per bike: 1
- 21 BOLT, FLANGE, 6x40 96001-06040-00Qty per bike: 7
- 22 BOLT, FLANGE, 6x50 96001-06050-00Qty per bike: 1
- 23 BOLT, FLANGE, 6x60 96001-06060-00Qty per bike: 1
- 24 BOLT, FLANGE, 6x70 96001-06070-00Qty per bike: 2
This catalogue is shared by: C125 2021. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
