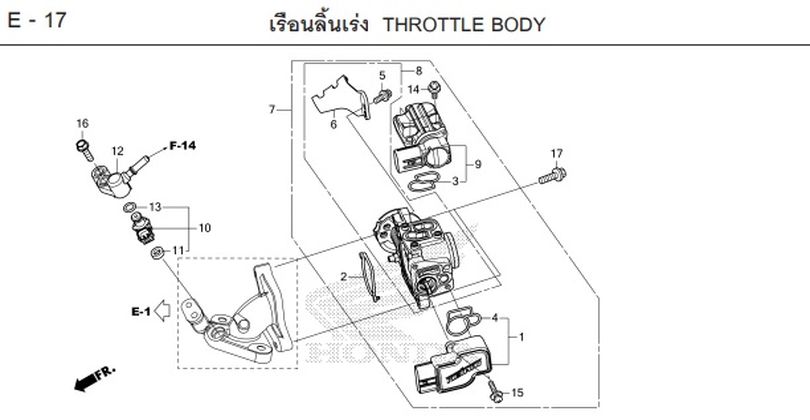

C125 2021 · E-17 THROTTLE BODY
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 SENSOR SET, SIGNAL 16060-K1L-D01Qty per bike: 1
- 2 O-RING, THROTTLE BODY 16075-K35-V01Qty per bike: 1
- 3 O-RING 16076-K35-V01Qty per bike: 1
- 4 O-RING 16077-KSS-J01Qty per bike: 1
- 5 SCREW, WASHER, 5x12 (TORX) 16081-KVS-J01Qty per bike: 1
- 6 PLATE, THROTTLE CABLE 16169-K56-N01Qty per bike: 1
- 7 THROTTLE VALVE SET 16400-K0G-T21Qty per bike: 1
- 8 THROTTLE BODY ASSY 16410-K0G-T21Qty per bike: 1
- 9 VALVE SET, IDLE AIR CONTROL 16430-K0G-901Qty per bike: 1
- 10 INJECTOR SET, FUEL 16450-K76-T61Qty per bike: 1
- 11 SEAL, INJECTOR 16472-KPC-D50Qty per bike: 1
- 12 COVER, INJECTOR 17560-K0G-T20Qty per bike: 1
- 13 O-RING, 6.3x2.2 91301-GGL-J01Qty per bike: 1
- 14 SCREW, WASHER, 4x10 93891-04010-18Qty per bike: 3
- 15 SCREW, WASHER, 4x16 93891-04016-18Qty per bike: 2
- 16 BOLT, FLANGE, 6x22 95701-06022-00Qty per bike: 2
- 17 BOLT, FLANGE, 6x20 96001-06020-00Qty per bike: 2
