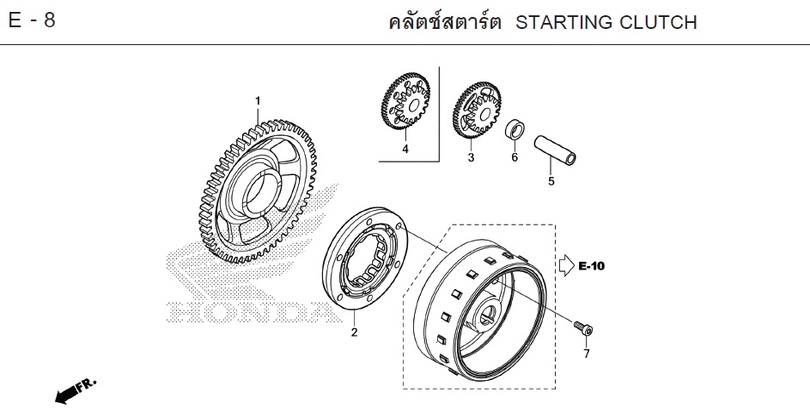

CBR250RR 2023 · E-8 STARTING CLUTCH
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-8
- 1 GEAR, STARTING CLUTCH DRIVE (67T) 28110-K64-N00Qty per bike: 1
- 2 CLUTCH, STARTING OUTER 28125-K64-N01Qty per bike: 1
- 3 GEAR, STARTING REDUCTION (53T/15T) 28130-K64-N00Qty per bike: 1
- 4 GEAR, STARTING CLUTCH DRIVE 28130-K64-NM0Qty per bike: 1
- 5 SHAFT, REDUCTION GEAR C 28132-MK5-000Qty per bike: 1
- 6 COLLAR, REDUCTION GEAR 28135-K64-N00Qty per bike: 1
- 7 BOLT, 8 mm 90010-MAY-000Qty per bike: 6
